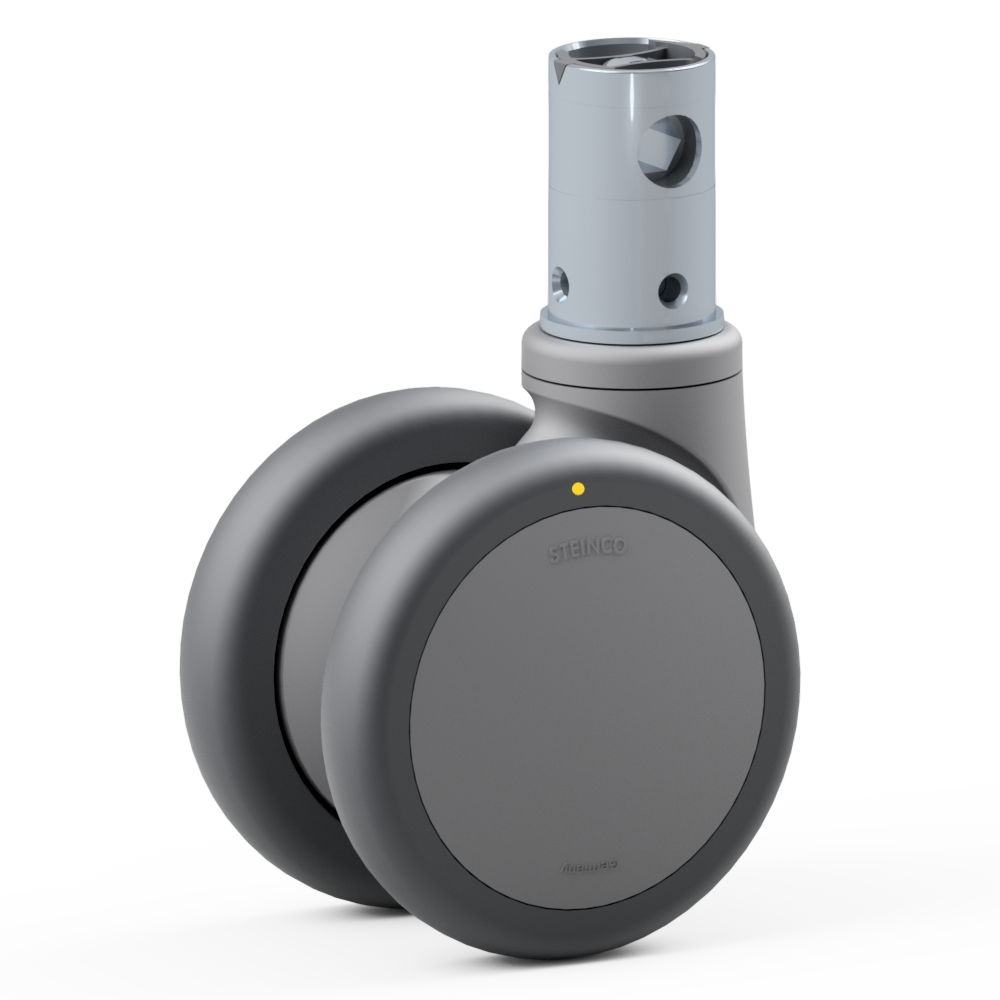

Image similar to the original

SERIES555E
Swivel castor, Ø 100 mm

Article No.: 4.SBB0.DNC0
GTIN / EAN: 4251984311460
CTN: 83022000

Description: Double swivel castor, Housing made of polyamide, swivel bearing with precision ball bearing, colour: RAL 7004 - Signal grey
Locking device with wheel lock, centrally operated
Wheel with ball bearing and non-marking grey polyurethane tyres (TPU)
Connection via stem Ø32x50mm switching profile horizontal
Special functions: cleaning by wipe disinfection possible without restrictions, conductive Double swivel castor with wheel lock, centrally operated, stem Ø32x50mm, wheel diameter: 100mm, load capacity: 100 kg, with non-marking grey polyurethane tyres (TPU) / 80 shore A, Conductive 4 SBB0 DNC0 4#SBB0#DNC0 4SBB0DNC0 caster Nylon castor non-marking twinwheel double swivel brake Hospital and surgery equipment Medical equipment Nursing home beds Medical equipment

Add to wishlist Remove from wishlist

Drawing Detail 3D Model PDF Data Sheet

Wheel
Wheel tyres	TPU
Wheel width (mm)	20
Wheel Ø (mm)	100
Colour of wheel hub/cover	RAL 7004 - Signal grey
Material of wheel hub	Polyamide
Wheel hardness	80 shore A
Wheel bearing	Ball bearing
Castor
Wheel axle	Steel riveted
Offset (mm)	31
Swivel radius (mm)	87
Design	Double swivel castor
Swivel bearing	Single-row ball bearing
Mounting height (mm)	116
Main colour	RAL 7004 - Signal grey
Housing material	Polyamide
Conductivity	Conductive
Weight	673 g
Attachment
Attachment	Stem for central locking
Fitting dimension	Stem Ø32x50mm switching profile horizontal
Lock
Locking device	Wheel lock
Central locking system	Central locking system

Load Capacity (dynamic)	100 kg
Load Capacity (static)	300 kg
Temperature Range	from -10 °C to 40 °C
Compliance	RoHS, REACH
Standards	DIN EN 12530
	ISO 22881
