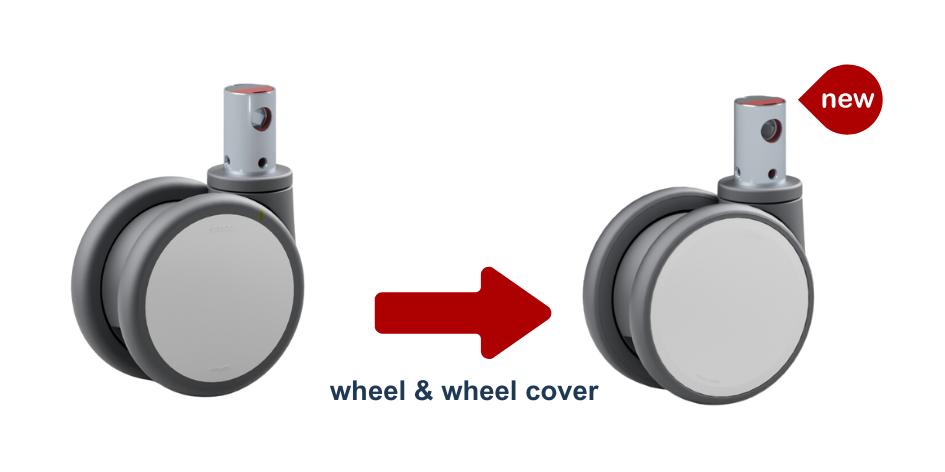

Fresh Design meets functionality:

the facelift of our dual wheel castors

Facelift twin wheel castors
Manufacturer casters and wheels - Made by STEINCO and Made in Germany
STEINCO Castors and wheels: Twin wheel castor, swivel castor with iF Design Award
STEINCO castors and wheels: twin wheel castorr and swivel castors with Reddot Design Award

Request our castors and wheels product catalog here.

Here you can find certificates and 3D / CAD data of our castors and wheels.

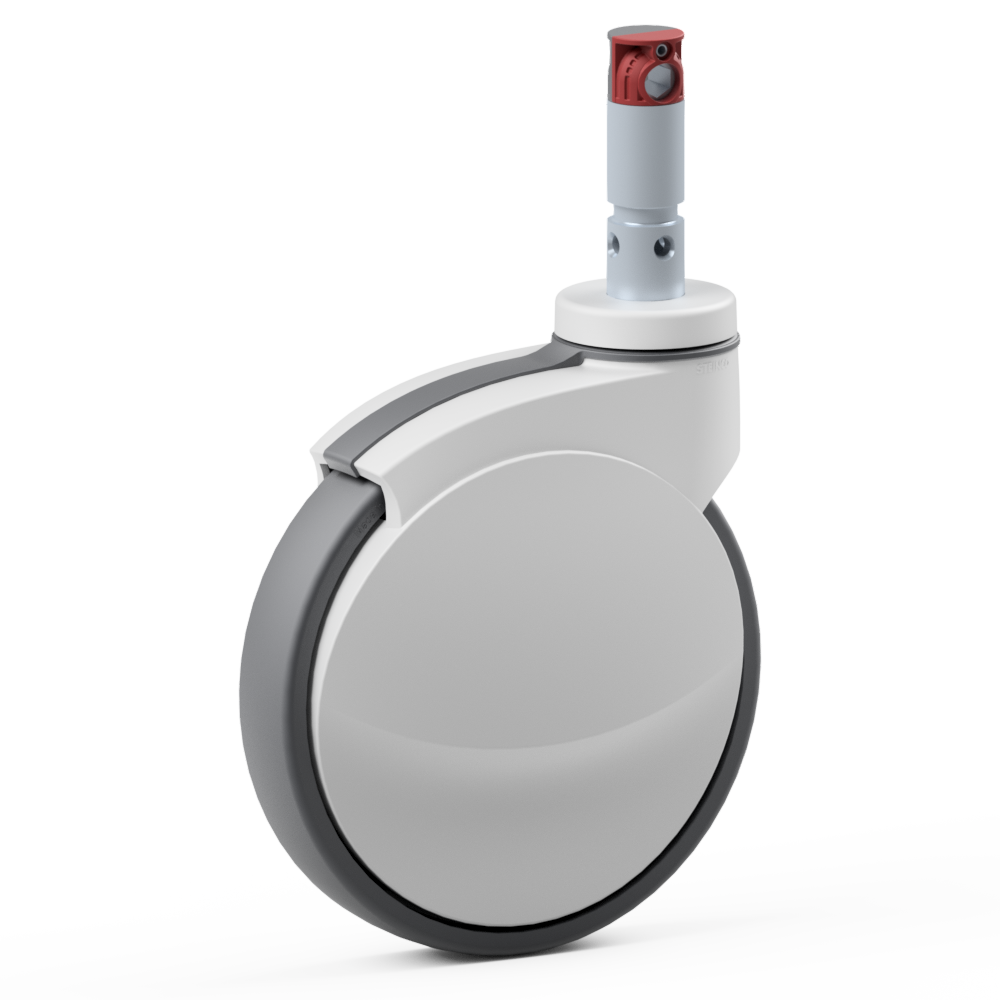

Swivel castor, ∅ 200 mm
Single wheel swivel castor, Housing made of polyamide, swivel bearing with precision ball bearing, colour: RAL 9002 - Grey white
Locking device with total and directional lock, centrally operated
Wheel with ball bearing and non-marking grey polyurethane tyres (TPU)
Connection via stem Ø32x50mm switching profile horizontal
Special functions: machine washable with the recommendations of the AK-BWA, conductive
Single wheel swivel castor with total and directional lock, centrally operated, stem Ø32x50mm, wheel diameter: 200mm, load capacity: 160 kg, with non-marking grey polyurethane tyres (TPU) / 94 shore A, Conductive 2 Z7C0 NQ10 2#Z7C0#NQ10 2Z7C0NQ10 caster Nylon castor non-marking singlewheel brake Hospital beds Medical equipment
Castor: Mounting height (mm): 233233Castor: Wheel Ø (mm): 200200Castor: Load capacity (kg): 160160

Swivel castor, ∅ 100 mm
Double swivel castor, Housing made of polyamide, swivel bearing with precision ball bearing, colour: RAL 9002 - Grey white
Locking device with total lock, centrally operated
Wheel with ball bearing and non-marking grey polyurethane tyres (TPU)
Connection via stem Ø32x50mm switching profile horizontal
Special functions: cleaning by wipe disinfection possible without restrictions, conductive
No catalog item: Double swivel castor with total lock, centrally operated, stem Ø32x50mm, wheel diameter: 100mm, load capacity: 150 kg, with non-marking grey polyurethane tyres (TPU) / 94 shore A, Conductive 4 Y0H0 DM30 4#Y0H0#DM30 4Y0H0DM30 Hospital beds Hospital and surgery equipment Operating tables Nursing home beds Medical equipment
Castor: Mounting height (mm): 105105Castor: Wheel Ø (mm): 100100Castor: Load capacity (kg): 150150

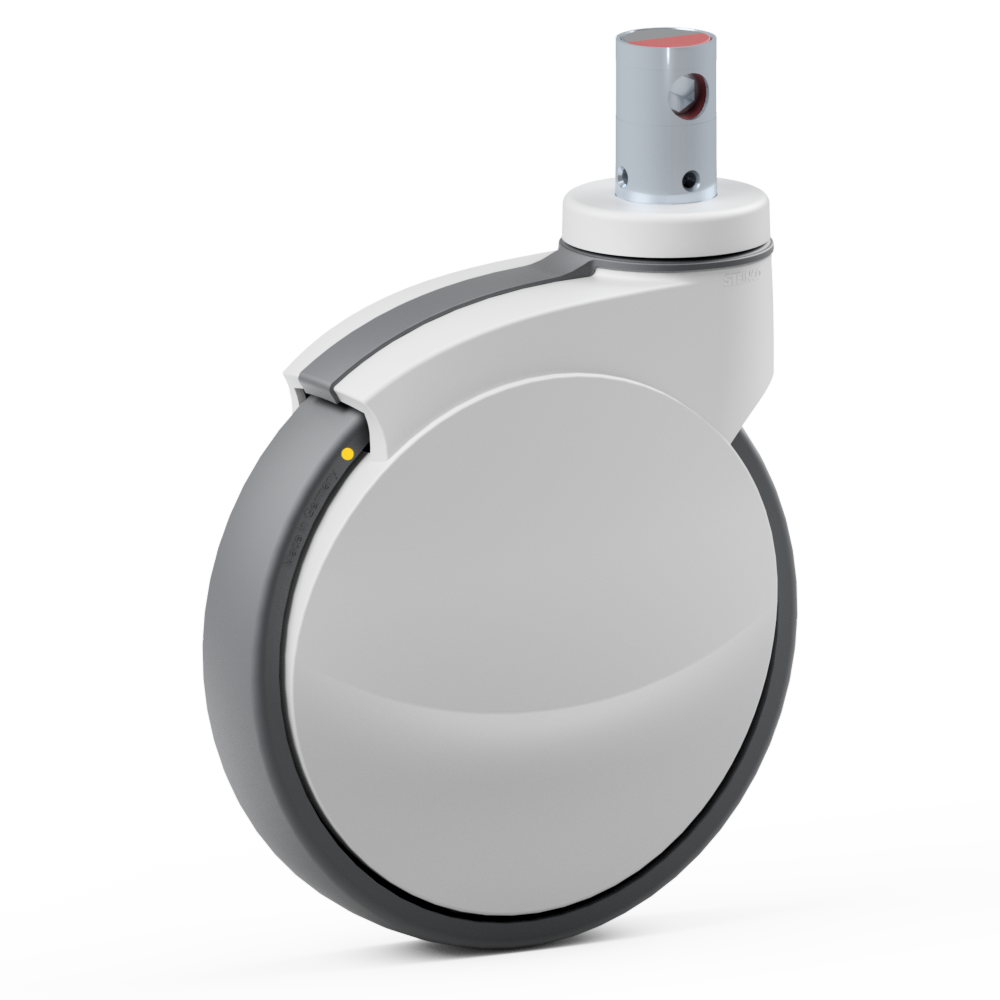

Swivel castor, ∅ 200 mm
Single wheel swivel castor, Housing made of polyamide, swivel bearing with precision ball bearing, colour: RAL 9002 - Grey white
Locking device with total and directional lock, centrally operated
Wheel with ball bearing and non-marking grey polyurethane tyres (TPU)
Connection via stem Ø28x95mm switching profile vertical
Special functions: machine washable with the recommendations of the AK-BWA
Single wheel swivel castor with total and directional lock, centrally operated, stem Ø28x95mm, wheel diameter: 200mm, load capacity: 160 kg, with non-marking grey polyurethane tyres (TPU) / 94 shore A 2 Z7N0 NQ00 2#Z7N0#NQ00 2Z7N0NQ00 caster Nylon castor non-marking singlewheel brake Hospital beds Medical equipment
Castor: Mounting height (mm): 233233Castor: Wheel Ø (mm): 200200Castor: Load capacity (kg): 160160

Swivel castor, ∅ 150 mm
Double swivel castor, Housing made of polyamide, swivel bearing with precision ball bearing, colour: RAL 9002 - Grey white
Locking device with total lock, centrally operated
Wheel with ball bearing and non-marking grey polyurethane tyres (TPU)
Connection via stem Ø28x95mm switching profile horizontal
Special functions: machine washable with the recommendations of the AK-BWA, conductive
Double swivel castor with total lock, centrally operated, stem Ø28x95mm, wheel diameter: 150mm, load capacity: 150 kg, with non-marking grey polyurethane tyres (TPU) / 94 shore A, Conductive 4 Y6T0 DQD0 4#Y6T0#DQD0 4Y6T0DQD0 caster Nylon castor non-marking twinwheel double swivel brake Hospital beds Hospital and surgery equipment Operating tables Nursing home beds Medical equipment
Castor: Mounting height (mm): 155155Castor: Wheel Ø (mm): 150150Castor: Load capacity (kg): 150150

Das vollständige Rollen Programm finden Sie hier!

STEINCO – Your wheel and roller manufacturer

Swivel castors. Double castors. Fixed castors.

STEINCO is your manufacturer and supplier for castors and wheels. We have been developing wheels and castors for a wide range of industries for many decades. Our range includes plastic, stainless steel, galvanized sheet steel and die-cast zinc castors. STEINCO castors meet the special quality requirements of our customers. Our castor and wheel portfolio is complemented by commercial products.

STEINCO swivel castors and double castors are characterized by a high level of smoothness and very good swivel capabilities. We use high-quality ball bearings for this purpose. As a manufacturer of wheels and castors, we know the high demands of our customers. We specialize in castors for the following industries:

  • medical technology
  • shop fitting
  • practice fittings
  • aerospace
  • office and laboratory
  • factory equipment
  • catering kitchen logistics

Thanks to our many years of expertise in the development and manufacture of castors and wheels, swivel castors, fixed castors and double castors, our products offer a wide range of innovative solutions and, of course, the well-known standard functions:

  • total brake (brake)
  • directional brake
  • centrally controllable brake
  • washability
  • electrically conductive castors

STEINCO develops and manufactures castors and wheels at four locations in Germany. Our own plastic injection moulding, turned part production, automated assembly and production areas for manual assembly guarantee a high level of vertical integration, flexibility and control of the quality processes.

Find the right product in the STEINCO castors and wheels shop!

The STEINCO wheel and castor shop offers advanced search options to help you find the right castors for your requirements.

You can use the following attributes to narrow down your search in our wheel and castor online shop:

You can use the following attributes to narrow down your search in our castor and wheel online shop:

  • Areas of application: Filter the castors by industry or application, such as medical technology, laboratory equipment, factory equipment and much more.
  • Castor dimensions: You can filter by the overall height of the castor and wheel diameter.
  • Type and dimensions of the castor fitting: Find the right castor fitting with different mounting plates, bolts, threaded bolts, spigots or back holes.
  • Castor design: Filter by single or double swivel castor or fixed castor.
  • Main castor material: Choose between plastic castors, steel plate castors, stainless steel castors and zinc die-cast castors.
  • Wheel bearings and swivel bearings: Choose between low-priced plain bearing wheel solutions and high-quality wheel bearings and swivel bearings with precision ball bearings.
  • Castor features: Find electrically conductive castors (ESD), different wheel hardnesses and castor load capacities.
  • Brakes: Find the right braking or locking function for your castor – wheel lock, directional lock or total lock with or without central control.

The product details page for a caster offers you additional information and several functions. Here you can see a product picture of the caster, 2D drawings of the caster dimensions and the specific product attributes. In addition, after registering, you can download 3D CAD drawings of the caster in many formats.

In the STEINCO castors and wheels shop, you will find more than 1,300 items with wheel diameters from 50mm to 200mm and load capacities of up to 200kg. We also offer a wide range of different castor fittings. Our wheels and castors meet the highest demands every day.

In our product search, you can add wheels and castors directly from STEINCO as the manufacturer to your shopping cart and request a quote. You will then receive a specific offer for the selected wheels and castors. If you do not find a suitable product, you can continue to use our contact form to describe your requirements for the wheels and castors and get in touch with our sales team.

We develop customized solutions for castors and wheels in close cooperation with you.

Over several decades, a wide range of standard products has been developed. We offer our swivel castors, fixed castors and double castors in a variety of materials: plastic castors, sheet steel castors, stainless steel castors and, for example, zinc die-cast castors!

In addition, we have developed individual solutions for wheels and castors in close cooperation with our customers, which focus, among other things, on the topics:

  • Fixings
  • Functions
  • colors
  • cost optimization
  • branding

As a German manufacturer of high-quality castors and wheels made of plastic, sheet steel, stainless steel and die-cast zinc, we can also design individual solutions with you.

Contact us with your individual requirements for special castors and wheels! Talk to our competent contact persons from sales and development!

STEINCO offers product quality and customer service from a single source!

Product quality is a top priority at STEINCO. As a quality manufacturer of castors, we test our products in numerous processes. Examples of this are endurance tests, drop tests and load tests.

Internationally valid standards, such as DIN EN 12527-12532, IEC 60601 etc., are the basis of our test procedures and production. In addition to that, we regularly conduct advanced and customer-specific tests on our castors and wheels.

Our sales and customer service department is also there to support you with everything from product development to the successful delivery of our castors and wheels. As an established manufacturer and supplier of wheels and castors, we offer you a close working relationship that extends to customized product solutions!

Would you like us to advise you in person?
