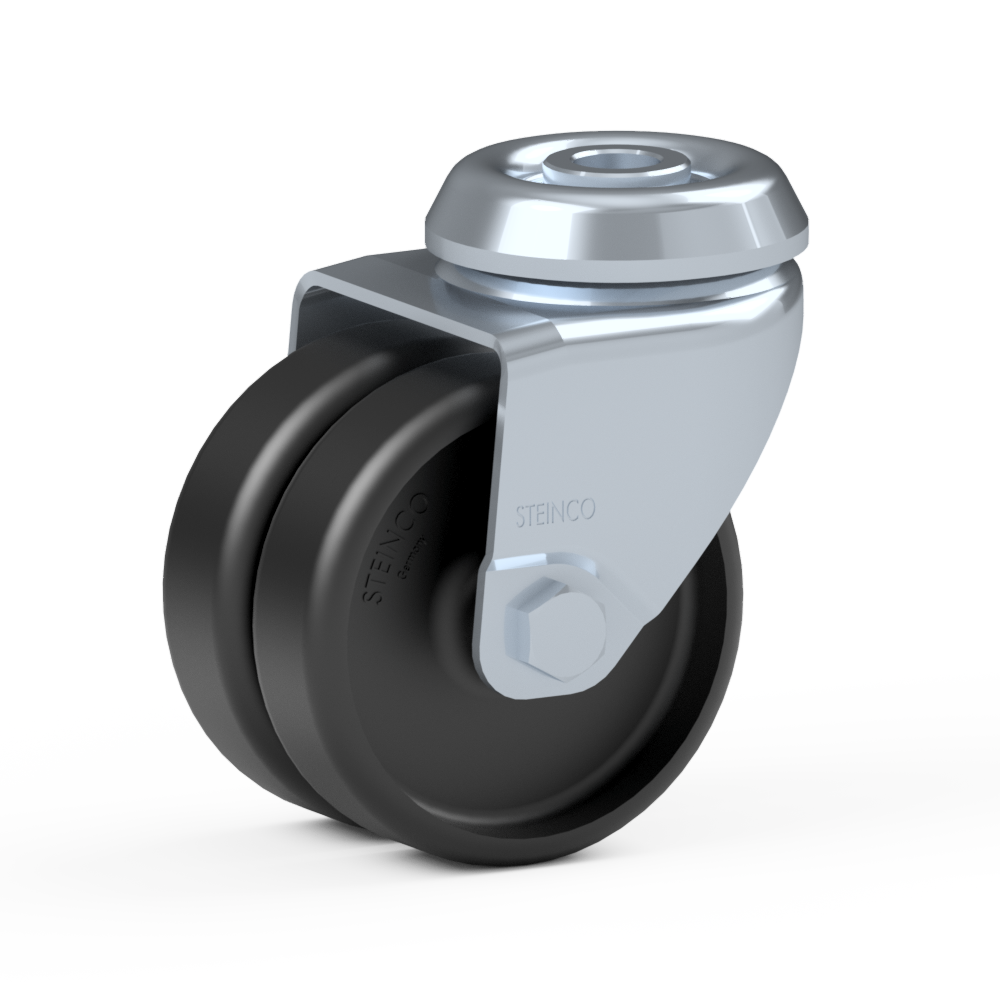

Image similar to the original1.A1N0.E710, Double swivel castor, ∅ 75 mm, Plain bearing, Polyamide, Bolt hole

SERIES320
Swivel castor, Ø 75 mm

Castors & wheels for store fitting like display stands and mobile furnitureCastors & wheels for factory equipment such as transport equipment, workshop trolleys and mobile equipment.
Article No.:1.A1N0.E710
GTIN / EAN: 4251984300327
CTN: 83022000
Description:Double swivel castor, Housing made of steel (zinc-coated), swivel bearing with double ball bearing, colour: zinc-coated
Wheel with plain bearing and non-marking whole plastic wheel made of polyamide
Connection via bolt hole M12mm
Special functions: cleaning by wipe disinfection possible without restrictions
Double swivel castor, bolt hole M12mm, wheel diameter: 75mm, load capacity: 90 kg, with non-marking whole plastic wheel made of polyamide / 75 shore D 1 A1N0 E710 1#A1N0#E710 1A1N0E710 caster Steel castor non-marking twinwheel double swivel Office and conference furniture Display stand Hospital and surgery equipment Laboratory equipment Mobile operating material Furniture Shelf trolleys Transport equipment Workshop trolleys Factory equipment Shop fitting
Wheel
Wheel tyresPolyamide
Wheel width (mm)23
Wheel Ø (mm)75
Colour of wheel hub/coverRAL 9011 - Graphite black
Material of wheel hubPolyamide
Wheel hardness75 shore D
Wheel bearingPlain bearing
Castor
Wheel axleSteel screwed
Offset (mm)28
Swivel radius (mm)69
DesignDouble swivel castor
Swivel bearingDouble-row ball bearing
Mounting height (mm)100
Main colourzinc-coated
Housing materialSteel (zinc-coated)
ConductivityNon-conductive
Weight398 g
Attachment
AttachmentBolt hole
Fitting dimensionBolt hole M12mm
Load Capacity (dynamic)90 kg
Load Capacity (static)270 kg
Temperature Rangefrom -10 °C to 40 °C
ComplianceRoHS, REACH
StandardsDIN EN 12530
