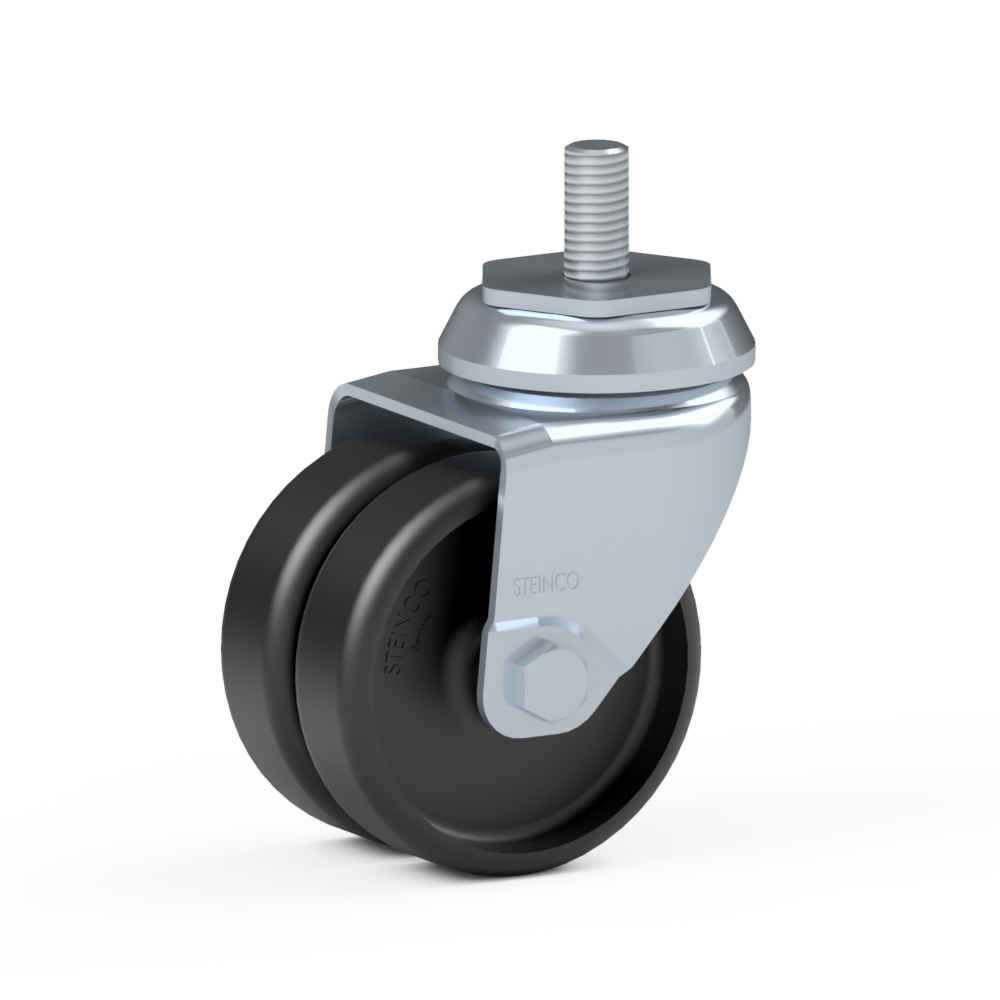

Image similar to the original1.A1V0.E710, Double swivel castor, ∅ 75 mm, Plain bearing, Polyamide, Screw

SERIES320
Swivel castor, Ø 75 mm

Castors & wheels for store fitting like display stands and mobile furnitureCastors & wheels for factory equipment such as transport equipment, workshop trolleys and mobile equipment.
Article No.:1.A1V0.E710
GTIN / EAN: 4251984300396
CTN: 83022000
Description:Double swivel castor, Housing made of steel (zinc-coated), swivel bearing with double ball bearing, colour: zinc-coated
Wheel with plain bearing and non-marking whole plastic wheel made of polyamide
Connection via screw M12-24mm
Special functions: cleaning by wipe disinfection possible without restrictions
Double swivel castor, screw M12x24mm, wheel diameter: 75mm, load capacity: 90 kg, with non-marking whole plastic wheel made of polyamide / 75 shore D 1 A1V0 E710 1#A1V0#E710 1A1V0E710 caster Steel castor non-marking twinwheel double swivel Office and conference furniture Display stand Hospital and surgery equipment Laboratory equipment Mobile operating material Furniture Shelf trolleys Transport equipment Workshop trolleys Factory equipment Shop fitting
Wheel
Wheel tyresPolyamide
Wheel width (mm)23
Wheel Ø (mm)75
Colour of wheel hub/coverRAL 9011 - Graphite black
Material of wheel hubPolyamide
Wheel hardness75 shore D
Wheel bearingPlain bearing
Castor
Wheel axleSteel screwed
Offset (mm)28
Swivel radius (mm)69
DesignDouble swivel castor
Swivel bearingDouble-row ball bearing
Mounting height (mm)103
Main colourzinc-coated
Housing materialSteel (zinc-coated)
ConductivityNon-conductive
Weight407 g
Attachment
AttachmentScrew
Fitting dimensionScrew M12-24mm
Load Capacity (dynamic)90 kg
Load Capacity (static)270 kg
Temperature Rangefrom -10 °C to 40 °C
ComplianceRoHS, REACH
StandardsDIN EN 12530
