SERIES820

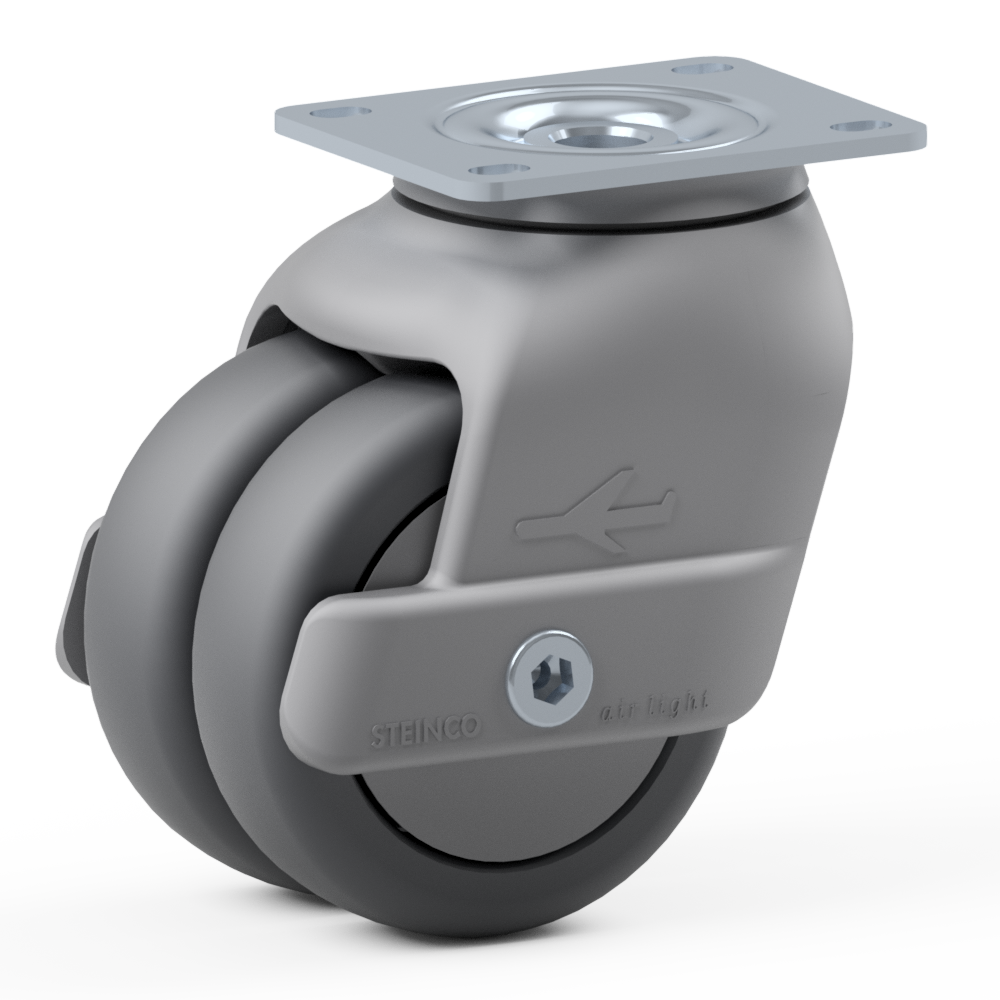

Swivel castor, Ø 75 mm
Article No.:
1.K560.N7G0
GTIN / EAN:
4251984314652
CTN:
83022000
Description:
Double swivel castor, Housing made of polyamide, swivel bearing with double ball bearing, colour: RAL 7004 - Signal grey
Wheel with ball bearing and non-marking grey polyurethane tyres (TPU) with thread guard
Connection via mounting plate 70x55mm
Special functions: cleaning by wipe disinfection possible without restrictions Double swivel castor, mounting plate 70x55mm, wheel diameter: 75mm, load capacity: 90 kg, with non-marking grey polyurethane tyres (TPU) / 80 shore A 1 K560 N7G0 1#K560#N7G0 1K560N7G0 caster Nylon castor non-marking twinwheel double swivel Plane serving trolley Aviation
| Wheel |
|
| Wheel tyres |
TPU |
| Wheel width (mm) |
24 |
| Wheel Ø (mm) |
75 |
| Colour of wheel hub/cover |
RAL 7004 - Signal grey |
| Material of wheel hub |
Polyamide |
| Wheel hardness |
80 shore A |
| Wheel bearing |
Ball bearing |
| Castor |
|
| Wheel axle |
Stainless steel screw
|
| Offset (mm) |
28
|
| Swivel radius (mm) |
72
|
| Design |
Double swivel castor
|
| Swivel bearing |
Double-row ball bearing
|
| Mounting height (mm) |
102
|
| Thread guard |
With thread guard
|
| Main colour |
RAL 7004 - Signal grey
|
| Housing material |
Polyamide
|
| Conductivity |
Non-conductive
|
|
Weight | 451 g
|
| Attachment |
|
| Attachment |
Mounting plate |
| Fitting dimension |
Mounting plate 70x55mm |
|
Load Capacity (dynamic) | 90 kg
|
|
Load Capacity (static) | 270 kg
|
|
Temperature Range | from -10 °C to 40 °C
|
|
Compliance | RoHS, REACH
|
|
Standards | DIN EN 12530
|
