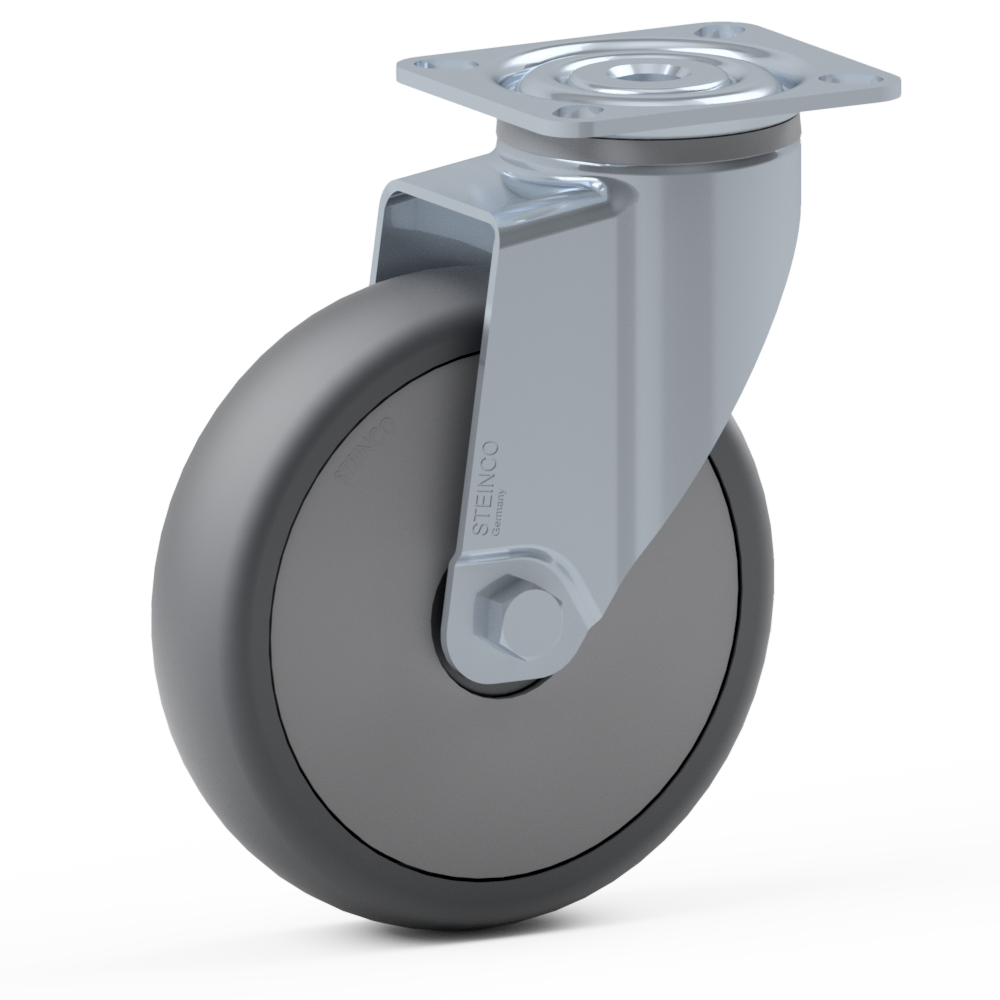

Image similar to the original1.LGM0.NDT0, Single wheel swivel castor, ∅ 100 mm, Ball bearing, TPE, Mounting plate

SERIES330R
Swivel castor, Ø 100 mm

Castors & wheels for medical equipment such as hospital beds and nursing beds, medical devices and hospital equipment.Castors & wheels for commercial kitchen logistics such as serving trolleys, tray trolleys and shelf trolleys.Castors & wheels for store fitting like display stands and mobile furnitureCastors & wheels for factory equipment such as transport equipment, workshop trolleys and mobile equipment.
Article No.:1.LGM0.NDT0
GTIN / EAN: 4251984302314
CTN: 87169090
Description:Single wheel swivel castor, Housing made of stainless steel, swivel bearing with double ball bearing
Wheel with ball bearing and non-marking grey thermoplastic tyres (TPE) with thread guard
Connection via mounting plate 95x70mm
Special functions: cleaning by wipe disinfection possible without restrictions, stainless
Single wheel swivel castor, mounting plate 95x70mm, wheel diameter: 100mm, load capacity: 90 kg, with non-marking grey thermoplastic tyres (TPE) / 90 shore A 1 LGM0 NDT0 1#LGM0#NDT0 1LGM0NDT0 caster Stainless steel castor non-marking singlewheel Display stand Hospital and surgery equipment Laboratory equipment Medical equipment Mobile operating material Furniture Shelf trolleys Serving trolleys Tray trolleys Transport equipment Workshop trolleys Factory equipment Central kitchen logistics Shop fitting Medical equipment
Wheel
Wheel tyresTPE
Wheel width (mm)32
Wheel Ø (mm)100
Colour of wheel hub/coverRAL 7004 - Signal grey
Material of wheel hubPolypropylene
Wheel hardness90 shore A
Wheel bearingBall bearing
Castor
Wheel axleStainless steel screw
Offset (mm)40
Swivel radius (mm)90
DesignSingle wheel swivel castor
Swivel bearingDouble-row ball bearing
Mounting height (mm)132
Thread guardWith thread guard
Housing materialStainless steel
ConductivityNon-conductive
RustproofStainless
Weight525 g
Attachment
AttachmentMounting plate
Fitting dimensionMounting plate 95x70mm
Load Capacity (dynamic)90 kg
Load Capacity (static)270 kg
Temperature Rangefrom -10 °C to 40 °C
ComplianceRoHS, REACH
StandardsDIN EN 12530
DIN EN 18867
