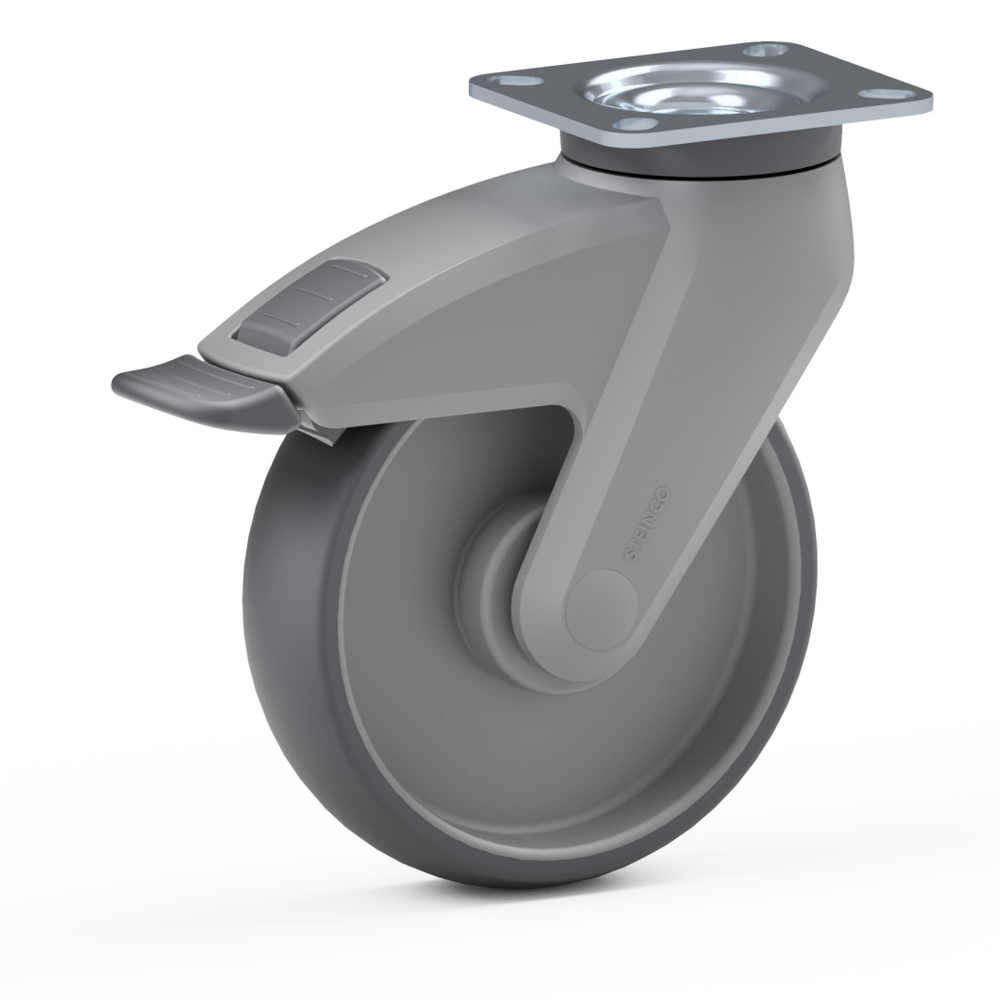

Image similar to the original 2.CD80.JKX0, Single wheel swivel castor, ∅ 100 mm, Plain bearing, TPE, Mounting plate

SERIES841R
Swivel castor, Ø 100 mm

Article No.: 2.CD80.JKX0
GTIN / EAN: 4251984303540
CTN: 94029000
Description: Single wheel swivel castor, Housing made of polyamide, swivel bearing with double ball bearing, colour: RAL 7004 - Signal grey
Locking device with total lock (RAL 7024 - Graphite grey)
Wheel with plain bearing and non-marking grey thermoplastic tyres (TPE)
Connection via mounting plate 95x70mm
Special functions: cleaning by wipe disinfection possible without restrictions, stainless
Single wheel swivel castor with total lock, mounting plate 95x70mm, wheel diameter: 100mm, load capacity: 90 kg, with non-marking grey thermoplastic tyres (TPE) / 90 shore A 2 CD80 JKX0 2#CD80#JKX0 2CD80JKX0 caster Nylon castor non-marking singlewheel brake Office and conference furniture Display stand Hospital and surgery equipment Laboratory equipment Medical equipment Mobile operating material Furniture Shelf trolleys Serving trolleys Tray trolleys Transport equipment Workshop trolleys Factory equipment Office & laboratory Central kitchen logistics Shop fitting Medical equipment
Wheel
Wheel tyres TPE
Wheel width (mm) 32
Wheel Ø (mm) 100
Colour of wheel hub/cover RAL 7004 - Signal grey
Material of wheel hub Polypropylene
Wheel hardness 90 shore A
Wheel bearing Plain bearing
Castor
Wheel axle Rust-free riveted
Offset (mm) 33
Swivel radius (mm) 114
Design Single wheel swivel castor
Swivel bearing Double-row ball bearing
Mounting height (mm) 135
Main colour RAL 7004 - Signal grey
Housing material Polyamide
Conductivity Non-conductive
Rustproof Stainless
Weight576 g
Attachment
Attachment Mounting plate
Fitting dimension Mounting plate 95x70mm
Lock
Locking device Total lock
Colour of brake pedal RAL 7024 - Graphite grey
Load Capacity (dynamic)90 kg
Load Capacity (static)270 kg
Temperature Rangefrom -10 °C to 40 °C
ComplianceRoHS, REACH
StandardsDIN EN 12530
DIN EN 18867
