SERIES805

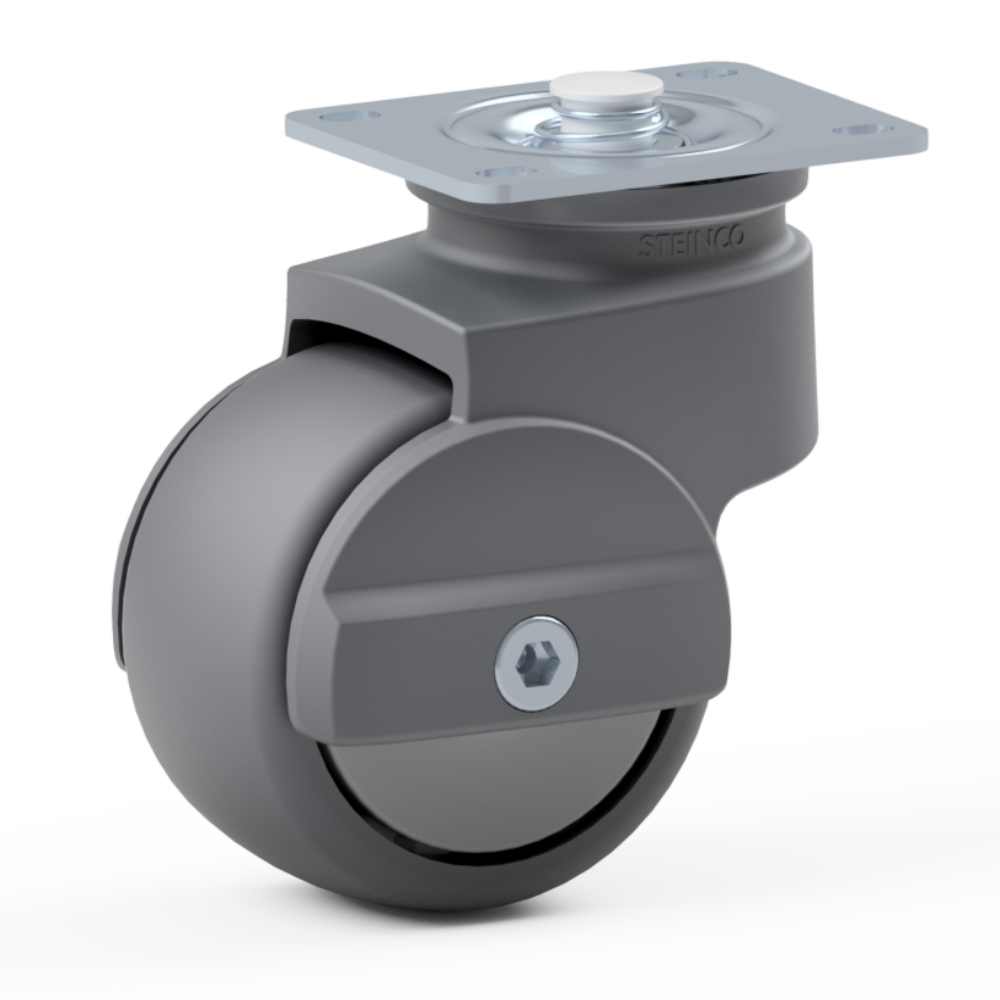

Swivel castor, Ø 75 mm
Article No.:2.K750.E141
GTIN / EAN: 4251984315369
CTN: 83022000
Description:Single wheel swivel castor, Housing made of polyamide, swivel bearing with double ball bearing, colour: RAL 7024 - Graphite grey
Locking device with wheel lock, centrally operated
Wheel with ball bearing and non-marking grey polyurethane tyres (TPU) with thread guard
Connection via mounting plate 70x55mm
Special functions: cleaning by wipe disinfection possible without restrictions Single wheel swivel castor with wheel lock, centrally operated, mounting plate 70x55mm, wheel diameter: 75mm, load capacity: 80 kg, with non-marking grey polyurethane tyres (TPU) / 80 shore A 2 K750 E141 2#K750#E141 2K750E141 caster Nylon castor non-marking singlewheel brake Plane serving trolley Aviation
| Wheel | |
|---|
| Wheel tyres | TPU |
|---|
| Wheel width (mm) | 40 |
|---|
| Wheel Ø (mm) | 75 |
|---|
| Colour of wheel hub/cover | RAL 7004 - Signal grey |
|---|
| Material of wheel hub | Polyamide |
|---|
| Wheel hardness | 80 shore A |
|---|
| Wheel bearing | Ball bearing |
|---|
| Castor | |
|---|
| Wheel axle | Steel screwed |
|---|
| Offset (mm) | 28 |
|---|
| Swivel radius (mm) | 66 |
|---|
| Design | Single wheel swivel castor |
|---|
| Swivel bearing | Double-row ball bearing |
|---|
| Mounting height (mm) | 102 |
|---|
| Thread guard | With thread guard |
|---|
| Main colour | RAL 7024 - Graphite grey |
|---|
| Housing material | Polyamide |
|---|
| Conductivity | Non-conductive |
|---|
| Weight | 350 g |
|---|
| Attachment | |
|---|
| Attachment | Mounting plate |
|---|
| Fitting dimension | Mounting plate 70x55mm |
|---|
| Lock | |
|---|
| Locking device | Wheel lock |
|---|
| Central locking system | Central locking system |
|---|
| Load Capacity (dynamic) | 80 kg |
|---|
| Load Capacity (static) | 240 kg |
|---|
| Temperature Range | from -10 °C to 40 °C |
|---|
| Compliance | RoHS, REACH |
|---|
| Standards | DIN EN 12530 |
|---|
