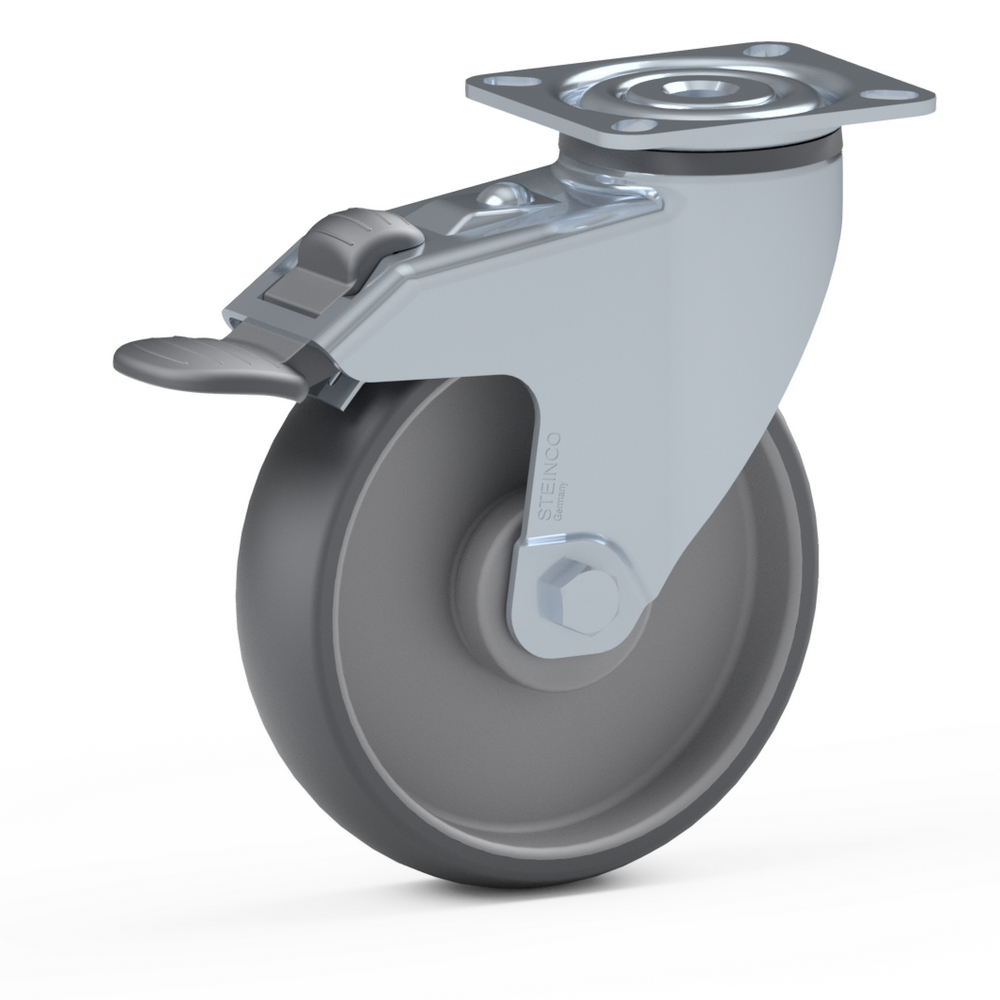

Image similar to the original2.LR00.JLB0, Single wheel swivel castor, ∅ 125 mm, Plain bearing, TPE, Mounting plate

SERIES331
Swivel castor, Ø 125 mm

Castors & wheels for medical equipment such as hospital beds and nursing beds, medical devices and hospital equipment.Castors & wheels for commercial kitchen logistics such as serving trolleys, tray trolleys and shelf trolleys.Castors & wheels for store fitting like display stands and mobile furnitureCastors & wheels for factory equipment such as transport equipment, workshop trolleys and mobile equipment.
Article No.:2.LR00.JLB0
GTIN / EAN: 4251984315185
CTN: 87169090
Description:Single wheel swivel castor, Housing made of steel (zinc-coated), swivel bearing with double ball bearing, colour: zinc-coated
Locking device with total lock (RAL 7024 - Graphite grey)
Wheel with plain bearing and non-marking grey thermoplastic tyres (TPE)
Connection via mounting plate 90x70mm
Special functions: cleaning by wipe disinfection possible without restrictions
Single wheel swivel castor with total lock, mounting plate 90x70mm, wheel diameter: 125mm, load capacity: 100 kg, with non-marking grey thermoplastic tyres (TPE) / 90 shore A 2 LR00 JLB0 2#LR00#JLB0 2LR00JLB0 caster Steel castor non-marking singlewheel brake Display stand Hospital and surgery equipment Laboratory equipment Medical equipment Mobile operating material Furniture Nursing home beds Shelf trolleys Serving trolleys Tray trolleys Transport equipment Workshop trolleys Factory equipment Central kitchen logistics Shop fitting Medical equipment
Wheel
Wheel tyresTPE
Wheel width (mm)32
Wheel Ø (mm)125
Colour of wheel hub/coverRAL 7004 - Signal grey
Material of wheel hubPolypropylene
Wheel hardness90 shore A
Wheel bearingPlain bearing
Castor
Wheel axleSteel screwed
Offset (mm)40
Swivel radius (mm)130
DesignSingle wheel swivel castor
Swivel bearingDouble-row ball bearing
Mounting height (mm)158
Main colourzinc-coated
Housing materialSteel (zinc-coated)
ConductivityNon-conductive
Weight716 g
Attachment
AttachmentMounting plate
Fitting dimensionMounting plate 90x70mm
Lock
Locking deviceTotal lock
Colour of brake pedalRAL 7024 - Graphite grey
Load Capacity (dynamic)100 kg
Load Capacity (static)300 kg
Temperature Rangefrom -10 °C to 40 °C
ComplianceRoHS, REACH
StandardsDIN EN 12530
