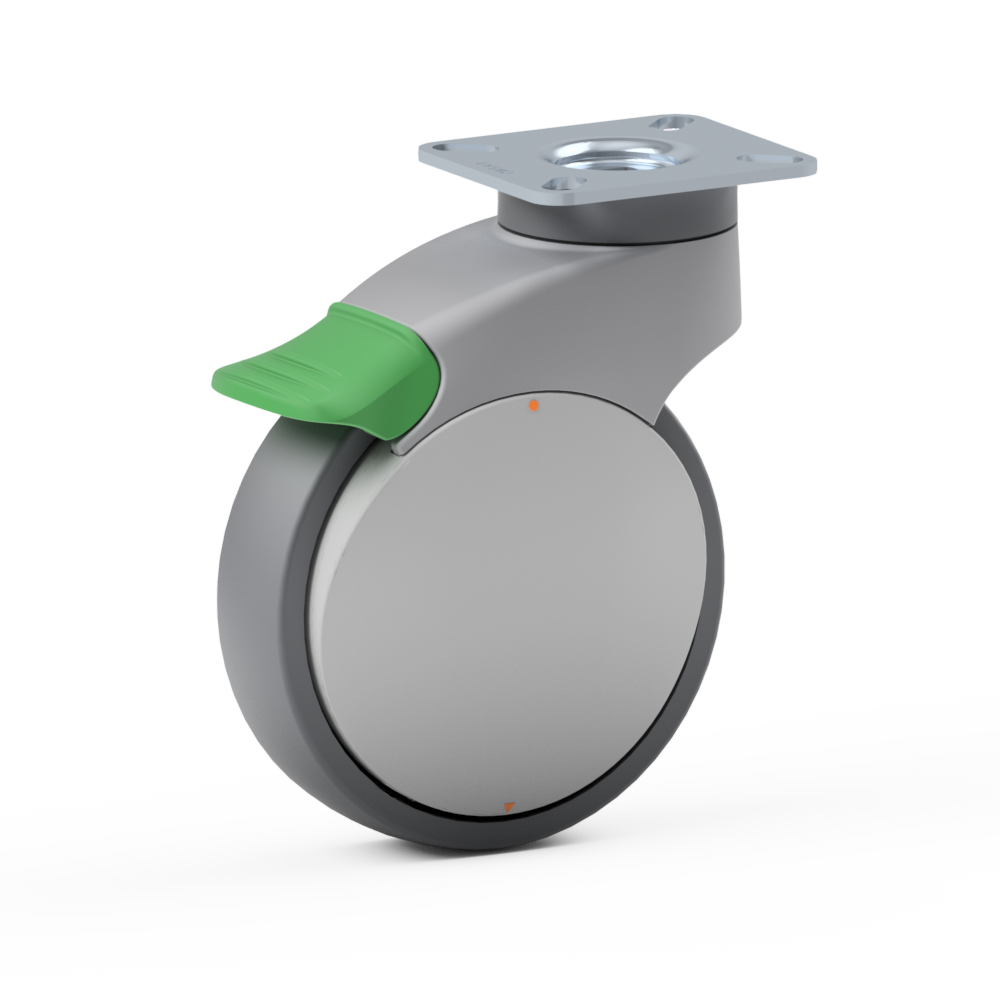

Image similar to the original2.X7L0.PT10, Single wheel swivel castor, ∅ 100 mm, Ball bearing, TPU, Mounting plate

SERIES882R
Swivel castor, Ø 100 mm

Castors & wheels for medical equipment such as hospital beds and nursing beds, medical devices and hospital equipment.Castors & wheels for commercial kitchen logistics such as serving trolleys, tray trolleys and shelf trolleys.Castors & wheels for factory equipment such as transport equipment, workshop trolleys and mobile equipment.Castors & wheels for office & laboratory like task chairs, office chairs, laboratory furniture, office furniture and conference furniture.
Article No.:2.X7L0.PT10
GTIN / EAN: 4251984307449
CTN: 83022000
Description:Single wheel swivel castor, Housing made of polyamide, swivel bearing with precision ball bearing, colour: RAL 7004 - Signal grey
Locking device with directional lock (RAL 6029 - Mint green)
Wheel with ball bearing and non-marking grey polyurethane tyres (TPU)
Connection via mounting plate 95x70mm
Special functions: cleaning by wipe disinfection possible without restrictions, stainless
Single wheel swivel castor with directional lock, mounting plate 95x70mm, wheel diameter: 100mm, load capacity: 90 kg, with non-marking grey polyurethane tyres (TPU) / 80 shore A 2 X7L0 PT10 2#X7L0#PT10 2X7L0PT10 caster Nylon castor non-marking singlewheel brake Office and conference furniture Display stand Hospital and surgery equipment Laboratory equipment Medical equipment Mobile operating material Furniture Serving trolleys Tray trolleys Transport equipment Factory equipment Office & laboratory Central kitchen logistics Medical equipment
Wheel
Wheel tyresTPU
Wheel width (mm)31
Wheel Ø (mm)100
Colour of wheel hub/coverRAL 7004 - Signal grey
Material of wheel hubPolyamide
Wheel hardness80 shore A
Wheel bearingBall bearing
Castor
Wheel axleRust-free riveted
Offset (mm)36
Swivel radius (mm)86
DesignSingle wheel swivel castor
Swivel bearingSingle-row ball bearing
Mounting height (mm)138
Main colourRAL 7004 - Signal grey
Housing materialPolyamide
ConductivityNon-conductive
RustproofStainless
Weight1,422 g
Attachment
AttachmentMounting plate
Fitting dimensionMounting plate 95x70mm
Lock
Locking deviceDirectional lock
Colour of brake pedalRAL 6029 - Mint green
Load Capacity (dynamic)90 kg
Load Capacity (static)270 kg
Temperature Rangefrom -10 °C to 40 °C
ComplianceRoHS, REACH
StandardsDIN EN 12530
DIN EN 18867
