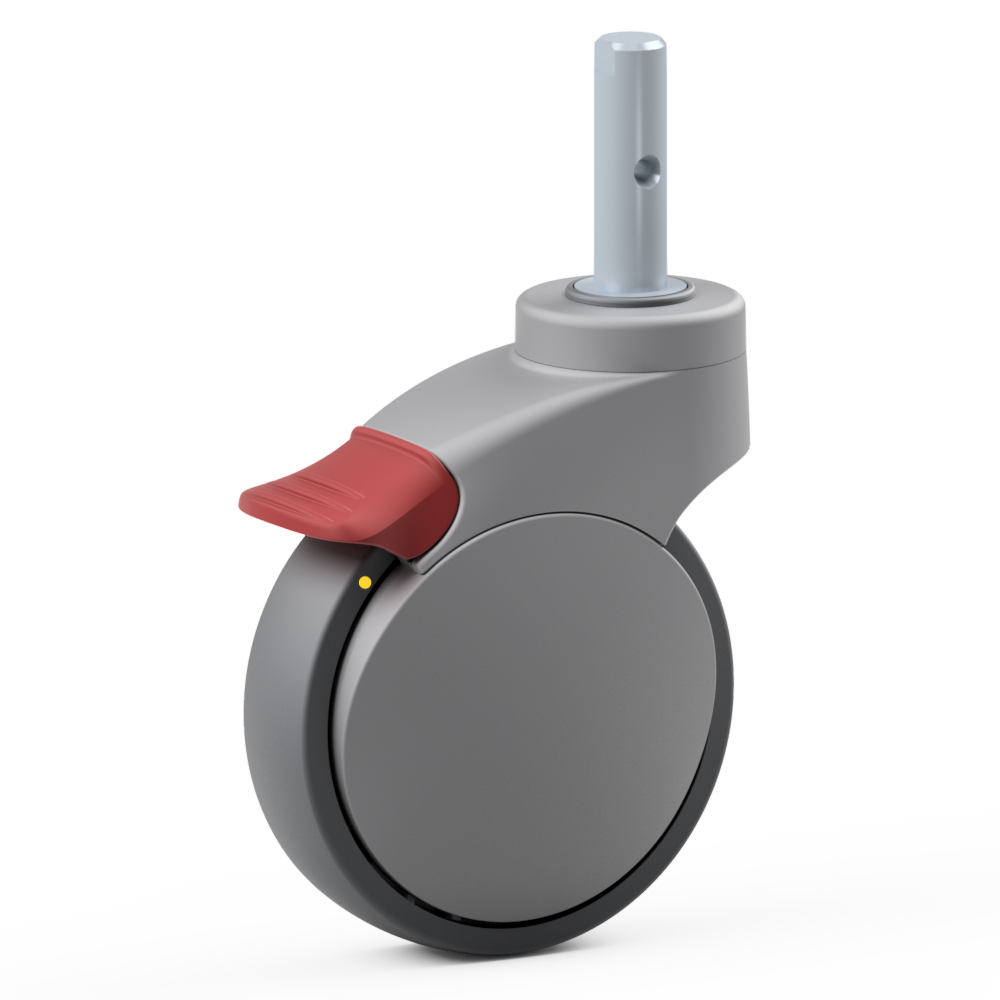

Image similar to the original2.XPG0.PW30, Single wheel swivel castor, ∅ 125 mm, Ball bearing, TPU, Plain stem with transversal bore

SERIES881
Swivel castor, Ø 125 mm

Castors & wheels for medical equipment such as hospital beds and nursing beds, medical devices and hospital equipment.Castors & wheels for commercial kitchen logistics such as serving trolleys, tray trolleys and shelf trolleys.Castors & wheels for factory equipment such as transport equipment, workshop trolleys and mobile equipment.Castors & wheels for office & laboratory like task chairs, office chairs, laboratory furniture, office furniture and conference furniture.
Article No.:2.XPG0.PW30
GTIN / EAN: 4251984308040
CTN: 87169090
Description:Single wheel swivel castor, Housing made of polyamide, swivel bearing with precision ball bearing, colour: RAL 7004 - Signal grey
Locking device with total lock (RAL 3001 - Signal red)
Wheel with ball bearing and non-marking grey polyurethane tyres (TPU)
Connection via stem Ø22x45mm
Special functions: cleaning by wipe disinfection possible without restrictions, conductive
Single wheel swivel castor with total lock, stem Ø22x44mm, wheel diameter: 125mm, load capacity: 100 kg, with non-marking grey polyurethane tyres (TPU) / 80 shore A, Conductive 2 XPG0 PW30 2#XPG0#PW30 2XPG0PW30 caster Nylon castor non-marking singlewheel brake Hospital and surgery equipment Laboratory equipment Medical equipment Mobile operating material Furniture Transport equipment Factory equipment Office & laboratory Central kitchen logistics Medical equipment
Wheel
Wheel tyresTPU
Wheel width (mm)31
Wheel Ø (mm)125
Colour of wheel hub/coverRAL 7004 - Signal grey
Material of wheel hubPolyamide
Wheel hardness80 shore A
Wheel bearingBall bearing
Castor
Wheel axleSteel riveted
Offset (mm)40
Swivel radius (mm)103
DesignSingle wheel swivel castor
Swivel bearingSingle-row ball bearing
Mounting height (mm)161
Main colourRAL 7004 - Signal grey
Housing materialPolyamide
ConductivityConductive
Weight640 g
Attachment
AttachmentPlain stem with transversal bore
Fitting dimensionStem Ø22x45mm
Lock
Locking deviceTotal lock
Colour of brake pedalRAL 3001 - Signal red
Load Capacity (dynamic)100 kg
Load Capacity (static)300 kg
Temperature Rangefrom -10 °C to 40 °C
ComplianceRoHS, REACH
StandardsDIN EN 12530
