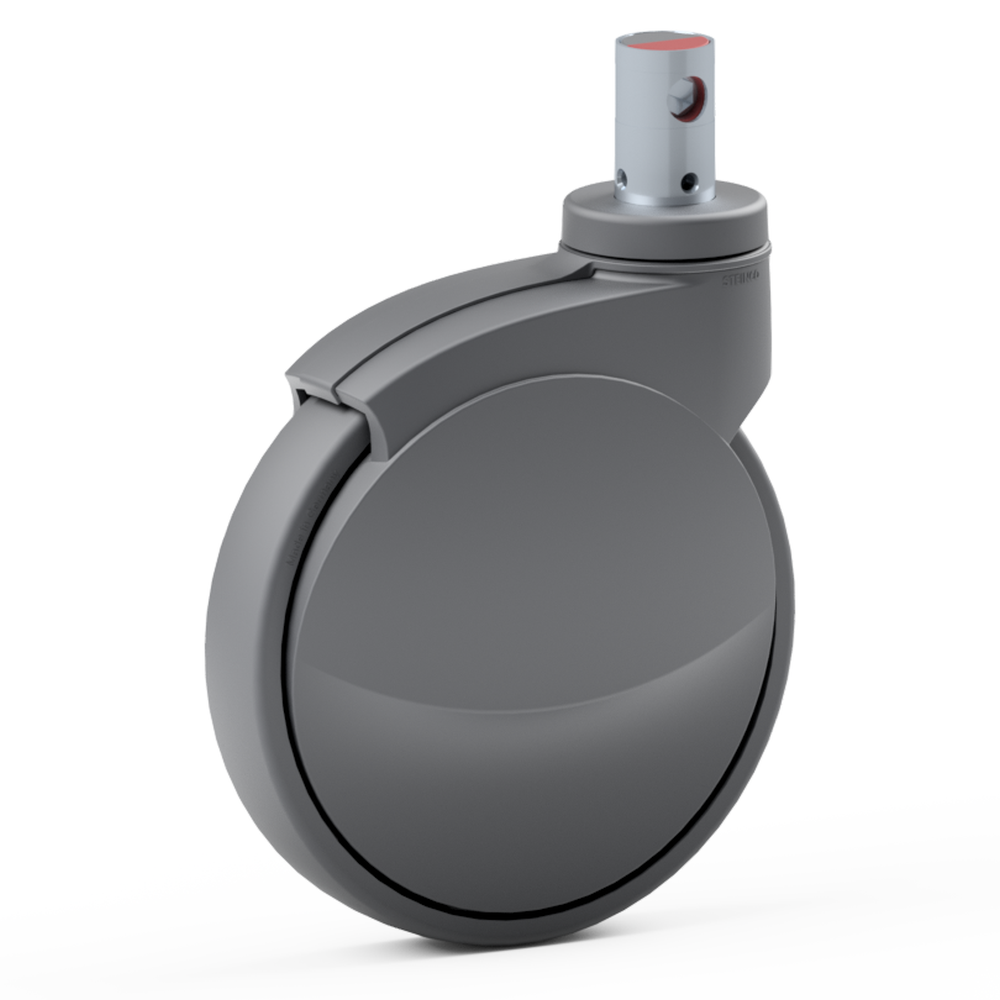

Image similar to the original

SERIES898W
Swivel castor, Ø 200 mm

Article No.: 2.Z6C1.NQ01
GTIN / EAN: 4251984314089
CTN: 94029000

Description: Single wheel swivel castor, Housing made of polyamide, swivel bearing with precision ball bearing, colour: RAL 7024 - Graphite grey
Locking device with total lock, centrally operated
Wheel with ball bearing and non-marking grey polyurethane tyres (TPU)
Connection via stem Ø32x50mm switching profile horizontal
Special functions: machine washable with the recommendations of the AK-BWA Single wheel swivel castor with total lock, centrally operated, stem Ø32x50mm, wheel diameter: 200mm, load capacity: 160 kg, with non-marking grey polyurethane tyres (TPU) / 94 shore A 2 Z6C1 NQ01 2#Z6C1#NQ01 2Z6C1NQ01 caster Nylon castor non-marking singlewheel brake Hospital beds Medical equipment Nursing home beds Medical equipment

Note: Additional consulting necessary - please contact our sales department.

Add to wishlist Remove from wishlist

Drawing Detail 3D Model PDF Data Sheet

Wheel
Wheel tyres	TPU
Wheel width (mm)	36
Wheel Ø (mm)	200
Cover colour	RAL 7024 - Graphite grey
Colour of wheel hub/cover	RAL 7024 - Graphite grey
Material of wheel hub	Polyamide
Wheel hardness	94 shore A
Wheel bearing	Ball bearing
Castor
Wheel axle	Steel riveted
Offset (mm)	60
Swivel radius (mm)	160
Design	Single wheel swivel castor
Swivel bearing	Single-row ball bearing
Mounting height (mm)	233
Main colour	RAL 7024 - Graphite grey
Housing material	Polyamide
Conductivity	Non-conductive
Washable	Washable (AK-BWA guideline)
Weight	1,355 g
Attachment
Attachment	Stem for central locking
Fitting dimension	Stem Ø32x50mm switching profile horizontal
Lock
Locking device	Total lock
Central locking system	Central locking system

Load Capacity (dynamic)	160 kg
Load Capacity (static)	480 kg
Temperature Range	from -10 °C to 40 °C
Compliance	RoHS, REACH
Standards	DIN EN 12531
	ISO 22882
