SERIES878

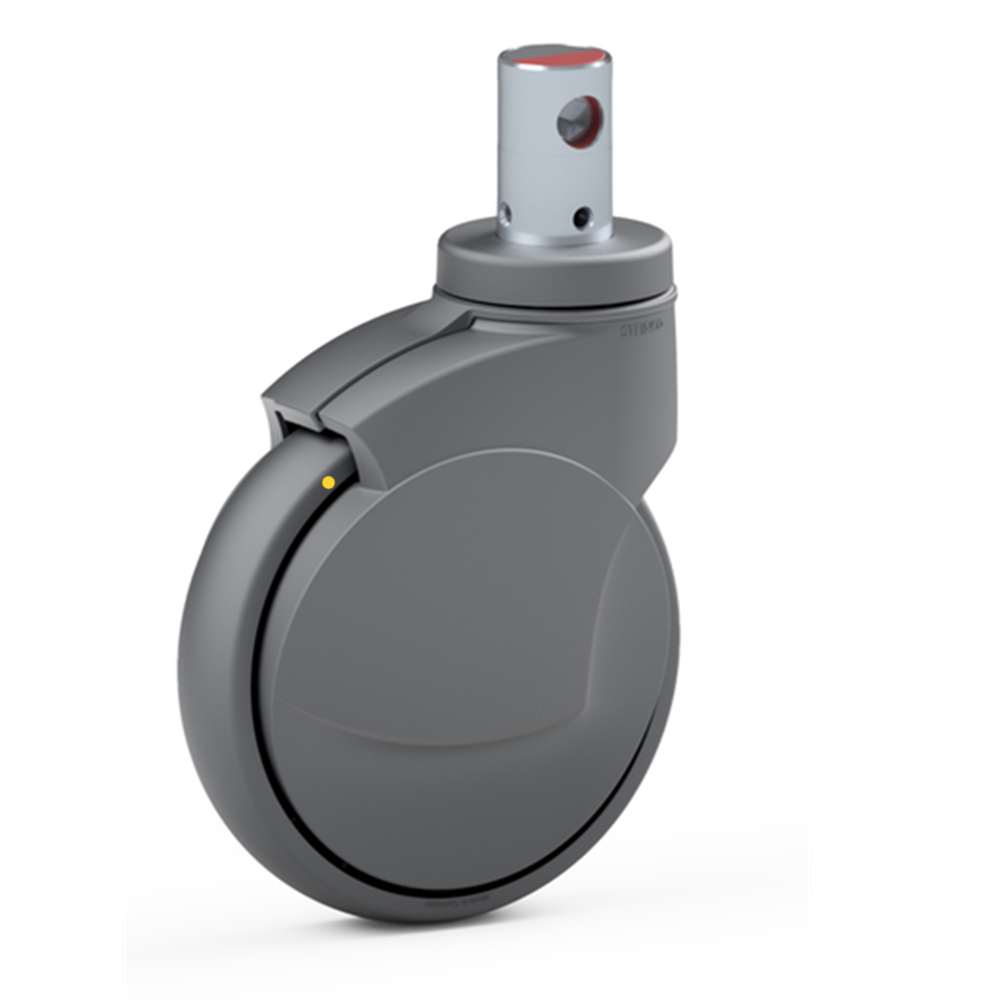

Swivel castor, Ø 125 mm
Article No.:2.ZAA1.NNH1
GTIN / EAN: 4251984317011
CTN: 94029000
Description:Single wheel swivel castor, Housing made of polyamide, swivel bearing with precision ball bearing, colour: RAL 7024 - Graphite grey
Locking device with total lock, centrally operated
Wheel with ball bearing and non-marking grey polyurethane tyres (TPU)
Connection via stem Ø32x50mm switching profile vertical
Special functions: cleaning by wipe disinfection possible without restrictions, conductive Single wheel swivel castor with total lock, centrally operated, stem Ø32x50mm, wheel diameter: 125mm, load capacity: 135 kg, with non-marking grey polyurethane tyres (TPU) / 94 shore A, Conductive 2 ZAA1 NNH1 2#ZAA1#NNH1 2ZAA1NNH1 caster Nylon castor non-marking singlewheel brake Hospital beds Medical equipment Nursing home beds Medical equipment
| Wheel | |
|---|
| Wheel tyres | TPU |
|---|
| Wheel width (mm) | 32 |
|---|
| Wheel Ø (mm) | 125 |
|---|
| Cover colour | RAL 7024 - Graphite grey |
|---|
| Colour of wheel hub/cover | RAL 7024 - Graphite grey |
|---|
| Material of wheel hub | Polyamide |
|---|
| Wheel hardness | 94 shore A |
|---|
| Wheel bearing | Ball bearing |
|---|
| Castor | |
|---|
| Wheel axle | Steel riveted |
|---|
| Offset (mm) | 35 |
|---|
| Swivel radius (mm) | 98 |
|---|
| Design | Single wheel swivel castor |
|---|
| Swivel bearing | Single-row ball bearing |
|---|
| Mounting height (mm) | 165 |
|---|
| Main colour | RAL 7024 - Graphite grey |
|---|
| Housing material | Polyamide |
|---|
| Conductivity | Conductive |
|---|
| Weight | 940 g |
|---|
| Attachment | |
|---|
| Attachment | Stem for central locking |
|---|
| Fitting dimension | Stem Ø32x50mm switching profile vertical |
|---|
| Lock | |
|---|
| Locking device | Total lock |
|---|
| Central locking system | Central locking system |
|---|
| Load Capacity (dynamic) | 135 kg |
|---|
| Load Capacity (static) | 405 kg |
|---|
| Temperature Range | from -10 °C to 40 °C |
|---|
| Compliance | RoHS, REACH |
|---|
| Zertifikate | Monitored by TÜV SÜD |
|---|
| Standards | DIN EN 12531 |
|---|
| ISO 22882 |
|---|
