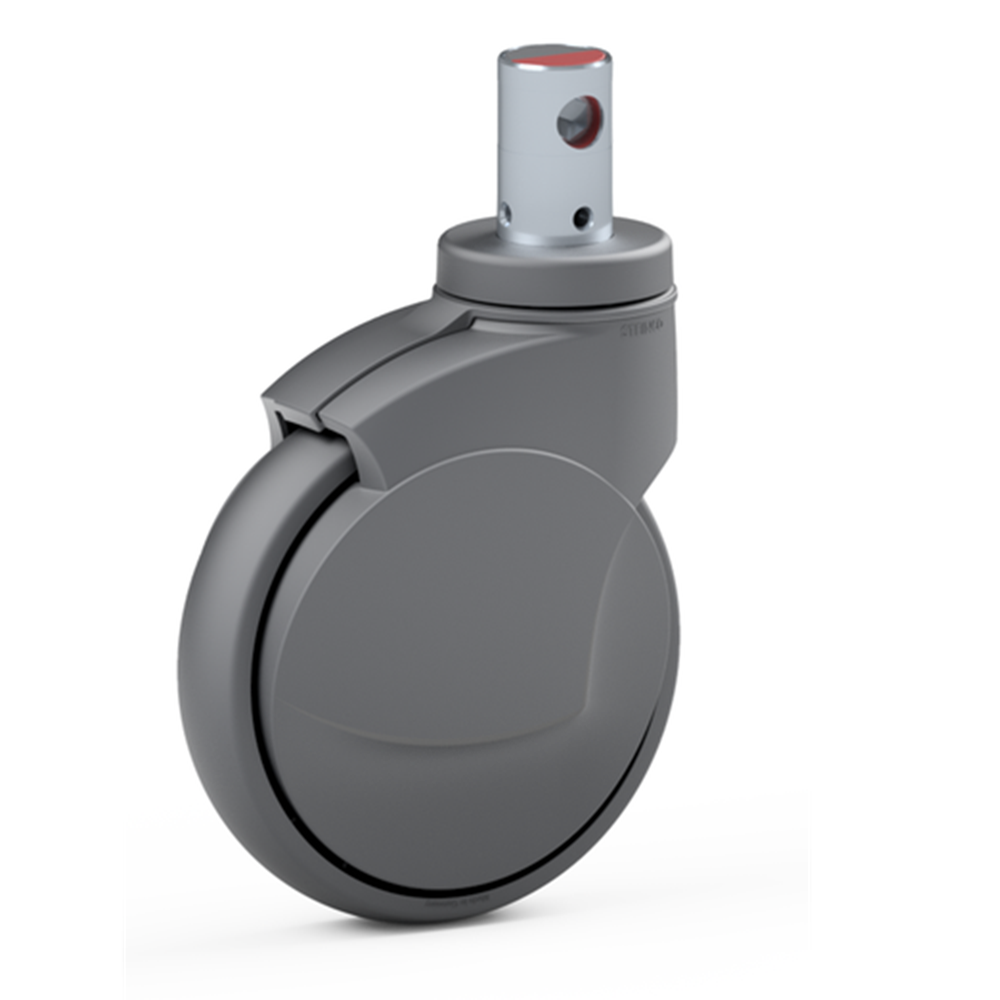

Image similar to the original2.ZEA1.NPG1, Single wheel swivel castor, ∅ 150 mm, Ball bearing, TPU, Stem for central locking

SERIES879
Swivel castor, Ø 150 mm

Castors & wheels for medical equipment such as hospital beds and nursing beds, medical devices and hospital equipment.
Article No.:2.ZEA1.NPG1
GTIN / EAN: 4251984317332
CTN: 94029000
Description:Single wheel swivel castor, Housing made of polyamide, swivel bearing with precision ball bearing, colour: RAL 7024 - Graphite grey
Locking device with total and directional lock, centrally operated
Wheel with ball bearing and non-marking grey polyurethane tyres (TPU)
Connection via stem Ø32x50mm switching profile vertical
Special functions: cleaning by wipe disinfection possible without restrictions
Single wheel swivel castor with total and directional lock, centrally operated, stem Ø32x50mm, wheel diameter: 150mm, load capacity: 135 kg, with non-marking grey polyurethane tyres (TPU) / 94 shore A 2 ZEA1 NPG1 2#ZEA1#NPG1 2ZEA1NPG1 caster Nylon castor non-marking singlewheel brake Hospital beds Medical equipment Nursing home beds Medical equipment
Note: Customized Product – Contact our Sales Department.
Wheel
Wheel tyresTPU
Wheel width (mm)32
Wheel Ø (mm)150
Cover colourRAL 7024 - Graphite grey
Colour of wheel hub/coverRAL 7024 - Graphite grey
Material of wheel hubPolyamide
Wheel hardness94 shore A
Wheel bearingBall bearing
Castor
Wheel axleSteel riveted
Offset (mm)40
Swivel radius (mm)115
DesignSingle wheel swivel castor
Swivel bearingSingle-row ball bearing
Mounting height (mm)188
Main colourRAL 7024 - Graphite grey
Housing materialPolyamide
ConductivityNon-conductive
Weight1,015 g
Attachment
AttachmentStem for central locking
Fitting dimensionStem Ø32x50mm switching profile vertical
Lock
Locking deviceTotal and directional lock
Central locking systemCentral locking system
Load Capacity (dynamic)135 kg
Load Capacity (static)405 kg
Temperature Rangefrom -10 °C to 40 °C
ComplianceRoHS, REACH
ZertifikateMonitored by TÜV SÜD
StandardsDIN EN 12531
ISO 22882
