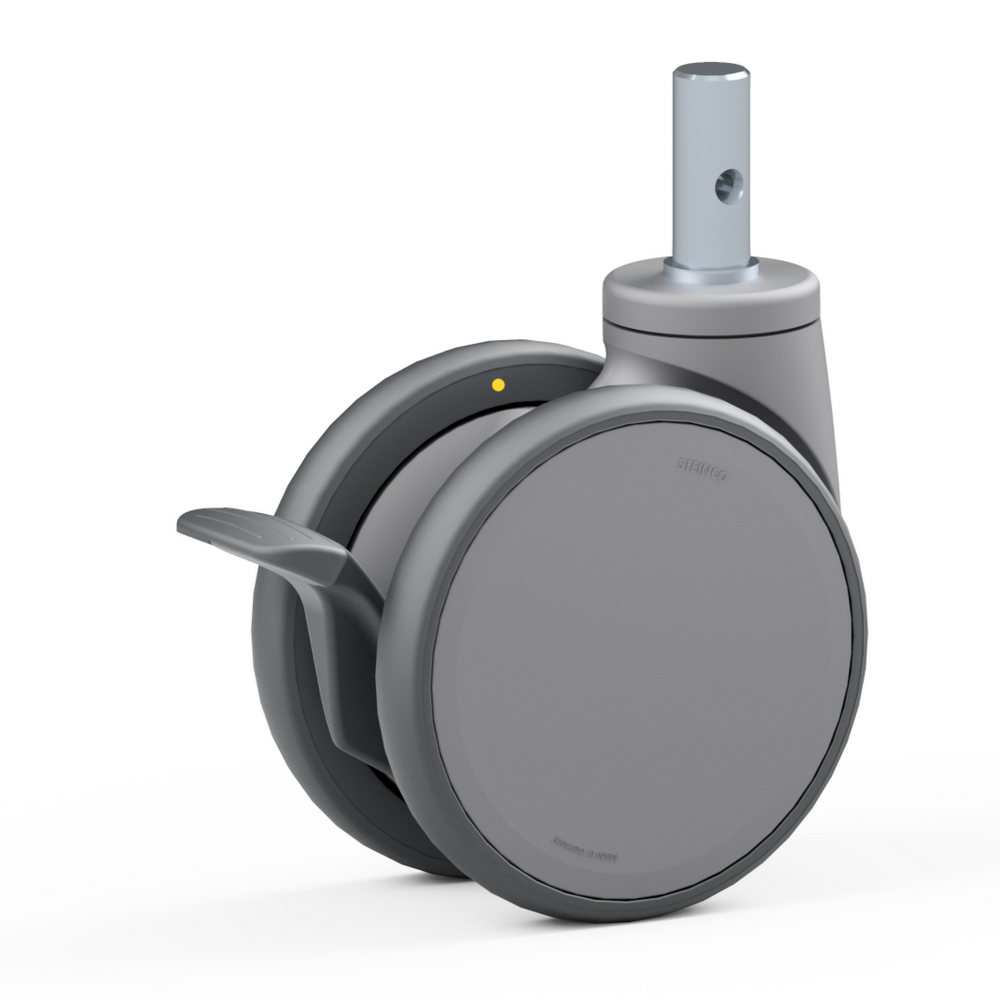

Image similar to the original4.SR70.FQJ0, Double swivel castor, ∅ 150 mm, Ball bearing, TPU, Plain stem with transversal bore

SERIES551
Swivel castor, Ø 150 mm

Castors & wheels for medical equipment such as hospital beds and nursing beds, medical devices and hospital equipment.Castors & wheels for commercial kitchen logistics such as serving trolleys, tray trolleys and shelf trolleys.Castors & wheels for factory equipment such as transport equipment, workshop trolleys and mobile equipment.Castors & wheels for office & laboratory like task chairs, office chairs, laboratory furniture, office furniture and conference furniture.
Article No.:4.SR70.FQJ0
GTIN / EAN: 4251984315581
CTN: 83022000
Description:Double swivel castor, Housing made of polyamide, swivel bearing with precision ball bearing, colour: RAL 9002 - Grey white
Locking device with total lock (RAL 7024 - Graphite grey)
Wheel with ball bearing and non-marking grey polyurethane tyres (TPU)
Connection via stem Ø18x45mm
Special functions: cleaning by wipe disinfection possible without restrictions, conductive
Double swivel castor with total lock, stem Ø18x45mm, wheel diameter: 150mm, load capacity: 130 kg, with non-marking grey polyurethane tyres (TPU) / 94 shore A, Conductive 4 SR70 FQJ0 4#SR70#FQJ0 4SR70FQJ0 caster Nylon castor non-marking twinwheel double swivel brake Hospital and surgery equipment Medical equipment Mobile operating material Furniture Shelf trolleys Transport equipment Factory equipment Office & laboratory Central kitchen logistics Medical equipment
Wheel
Wheel tyresTPU
Wheel width (mm)20
Wheel Ø (mm)150
Colour of wheel hub/coverRAL 9002 - Grey white
Material of wheel hubPolyamide
Wheel hardness94 shore A
Wheel bearingBall bearing
Castor
Wheel axleSteel riveted
Offset (mm)52
Swivel radius (mm)156
DesignDouble swivel castor
Swivel bearingSingle-row ball bearing
Mounting height (mm)183
Main colourRAL 9002 - Grey white
Housing materialPolyamide
ConductivityConductive
Weight1,323 g
Attachment
AttachmentPlain stem with transversal bore
Fitting dimensionStem Ø18x45mm
Lock
Locking deviceTotal lock
Colour of brake pedalRAL 7024 - Graphite grey
Load Capacity (dynamic)130 kg
Load Capacity (static)390 kg
Temperature Rangefrom -10 °C to 40 °C
ComplianceRoHS, REACH
StandardsDIN EN 12530
DIN EN 12528
