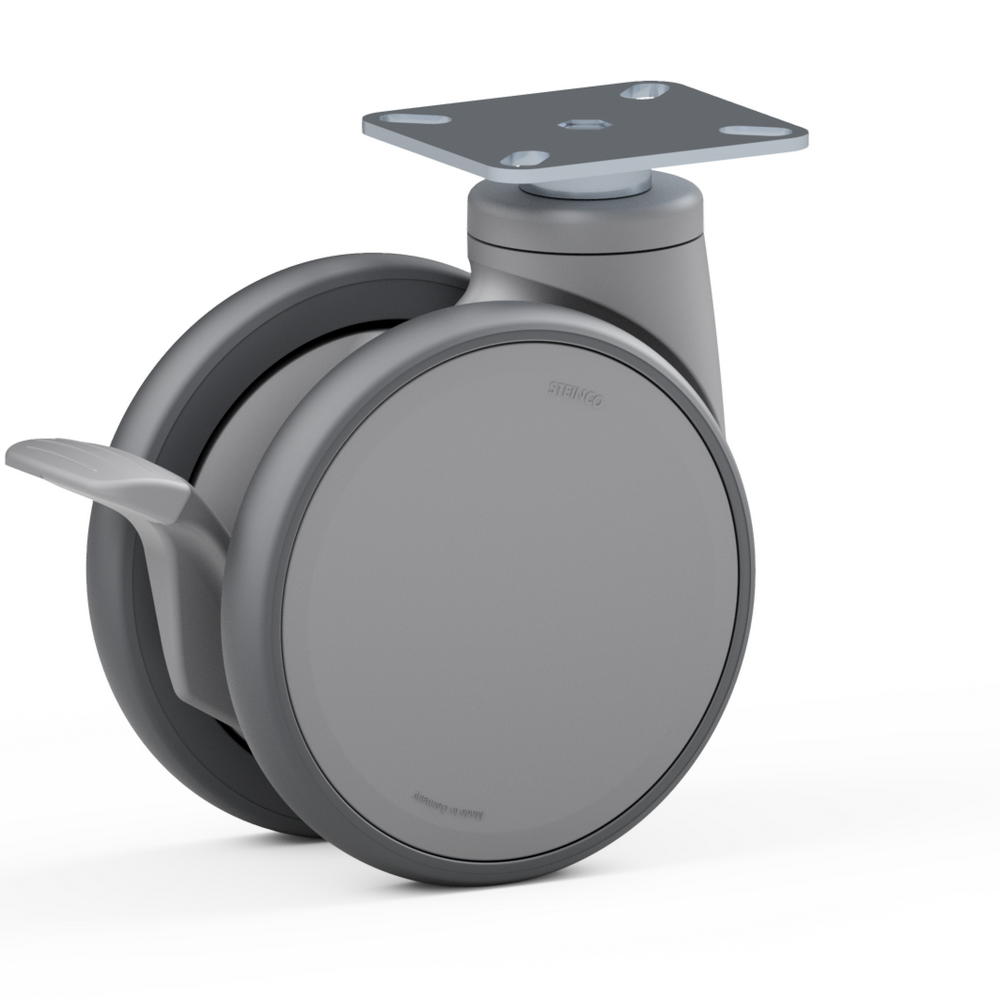

Image similar to the original 4.TNA0.FPA0, Double swivel castor, ∅ 125 mm, Ball bearing, TPU, Mounting plate

SERIES552
Swivel castor, Ø 125 mm

Castors & wheels for medical equipment such as hospital beds and nursing beds, medical devices and hospital equipment. Castors & wheels for commercial kitchen logistics such as serving trolleys, tray trolleys and shelf trolleys. Castors & wheels for factory equipment such as transport equipment, workshop trolleys and mobile equipment. Castors & wheels for office & laboratory like task chairs, office chairs, laboratory furniture, office furniture and conference furniture.
Article No.: 4.TNA0.FPA0
GTIN / EAN: 4251984316113
CTN: 83022000
Description: Double swivel castor, Housing made of polyamide, swivel bearing with precision ball bearing, colour: RAL 7004 - Signal grey
Locking device with directional lock (RAL 9011 - Graphite black)
Wheel with ball bearing and non-marking grey polyurethane tyres (TPU)
Connection via mounting plate 77x67mm
Special functions: cleaning by wipe disinfection possible without restrictions Double swivel castor with directional lock, mounting plate 77x67mm, wheel diameter: 125mm, load capacity: 130 kg, with non-marking grey polyurethane tyres (TPU) / 94 shore A 4 TNA0 FPA0 4#TNA0#FPA0 4TNA0FPA0 caster Nylon castor non-marking twinwheel double swivel brake Office and conference furniture Hospital and surgery equipment Medical equipment Mobile operating material Furniture Shelf trolleys Serving trolleys Tray trolleys Transport equipment Factory equipment Office & laboratory Central kitchen logistics Medical equipment
Note: Additional consulting necessary - please contact our sales department.
Wheel
Wheel tyres TPU
Wheel width (mm) 20
Wheel Ø (mm) 125
Colour of wheel hub/cover RAL 7004 - Signal grey
Material of wheel hub Polyamide
Wheel hardness 94 shore A
Wheel bearing Ball bearing
Castor
Wheel axle Steel riveted
Offset (mm) 40
Swivel radius (mm) 132
Design Double swivel castor
Swivel bearing Single-row ball bearing
Mounting height (mm) 154
Main colour RAL 7004 - Signal grey
Housing material Polyamide
Conductivity Non-conductive
Weight1,016 g
Attachment
Attachment Mounting plate
Fitting dimension Mounting plate 77x67mm
Lock
Locking device Directional lock
Colour of brake pedal RAL 9011 - Graphite black
Load Capacity (dynamic)130 kg
Load Capacity (static)390 kg
Temperature Rangefrom -10 °C to 40 °C
ComplianceRoHS, REACH
StandardsDIN EN 12530
DIN EN 12528
