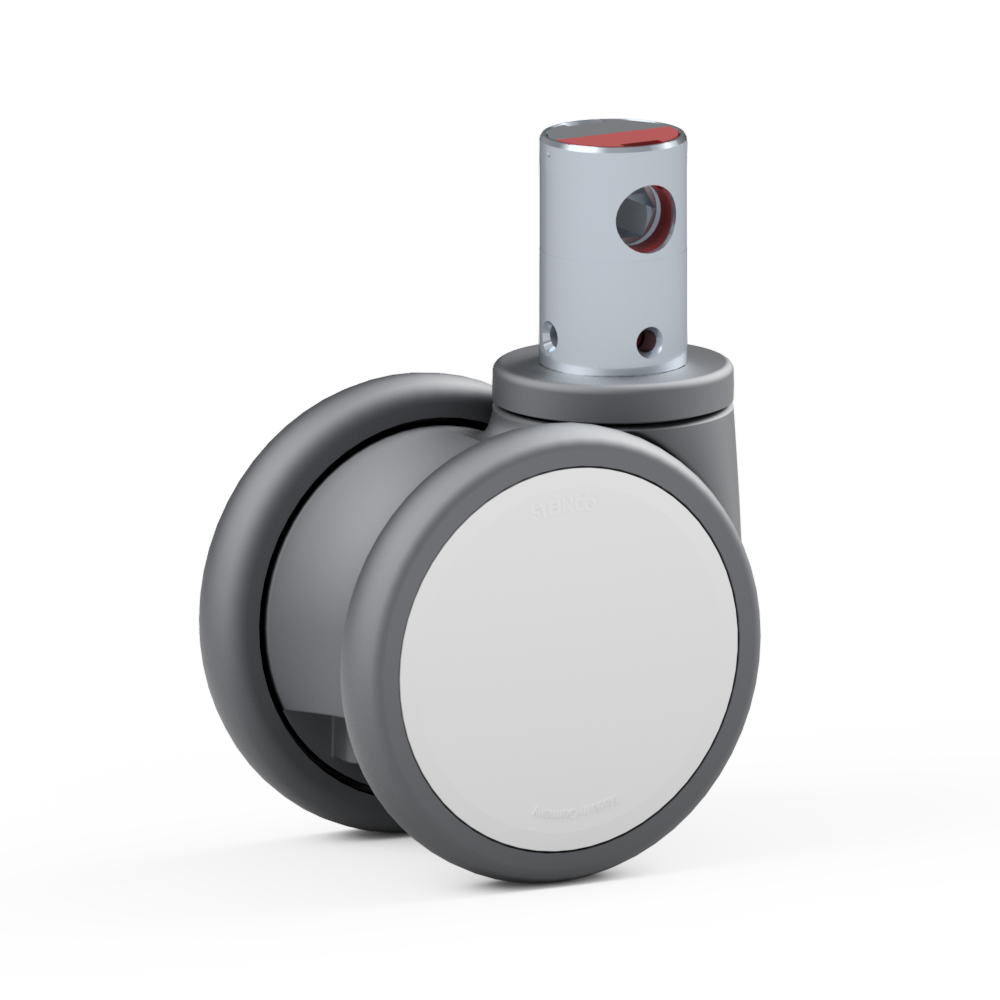

Image similar to the original4.Y0G0.FM10, Double swivel castor, ∅ 100 mm, Ball bearing, TPU, Stem for central locking

SERIES568
Swivel castor, Ø 100 mm

Castors & wheels for medical equipment such as hospital beds and nursing beds, medical devices and hospital equipment.
Article No.:4.Y0G0.FM10
GTIN / EAN: 4251984316809
CTN: 83022000
Description:Double swivel castor, Housing made of polyamide, swivel bearing with precision ball bearing, colour: RAL 9002 - Grey white
Locking device with total lock, centrally operated
Wheel with ball bearing and non-marking grey polyurethane tyres (TPU)
Connection via stem Ø32x50mm switching profile horizontal
Special functions: cleaning by wipe disinfection possible without restrictions Double swivel castor with total lock, centrally operated, stem Ø32x50mm, wheel diameter: 100mm, load capacity: 150 kg, with non-marking grey polyurethane tyres (TPU) / 94 shore A 4 Y0G0 FM10 4#Y0G0#FM10 4Y0G0FM10 caster Nylon castor non-marking twinwheel double swivel brake Hospital beds Medical equipment Operating tables Nursing home beds Medical equipment
Note: Customized Product – Contact our Sales Department.
Wheel
Wheel tyresTPU
Wheel width (mm)16
Wheel Ø (mm)100
Colour of wheel hub/coverRAL 9002 - Grey white
Material of wheel hubPolyamide
Wheel hardness94 shore A
Wheel bearingBall bearing
Castor
Wheel axleSteel riveted
Offset (mm)33
Swivel radius (mm)89
DesignDouble swivel castor
Swivel bearingSingle-row ball bearing
Mounting height (mm)105
Main colourRAL 9002 - Grey white
Housing materialPolyamide
ConductivityNon-conductive
Weight792 g
Attachment
AttachmentStem for central locking
Fitting dimensionStem Ø32x50mm switching profile horizontal
Lock
Locking deviceTotal lock
Central locking systemCentral locking system
Load Capacity (dynamic)150 kg
Load Capacity (static)450 kg
Temperature Rangefrom -10 °C to 40 °C
ComplianceRoHS, REACH
ZertifikateMonitored by TÜV SÜD
StandardsDIN EN 12531
ISO 22882
