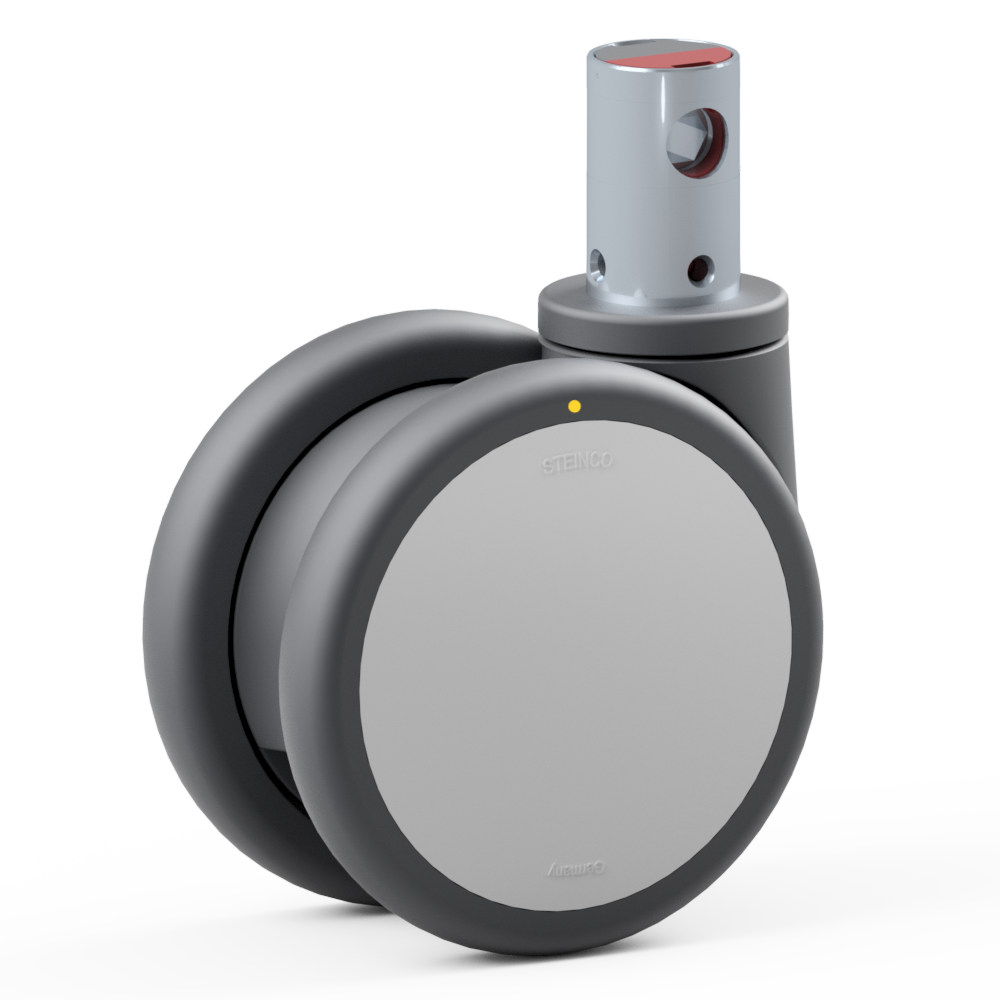

Image similar to the original

SERIES569
Swivel castor, Ø 150 mm

Article No.: 4.Y7H0.DQ30
GTIN / EAN: 4251984313297
CTN: 83022000

Description: Double swivel castor, Housing made of polyamide, swivel bearing with precision ball bearing, colour: RAL 9002 - Grey white
Locking device with total and directional lock, centrally operated
Wheel with ball bearing and non-marking grey polyurethane tyres (TPU)
Connection via stem Ø32x50mm switching profile horizontal
Special functions: cleaning by wipe disinfection possible without restrictions, conductive Double swivel castor with total and directional lock, centrally operated, stem Ø32x50mm, wheel diameter: 150mm, load capacity: 150 kg, with non-marking grey polyurethane tyres (TPU) / 94 shore A, Conductive 4 Y7H0 DQ30 4#Y7H0#DQ30 4Y7H0DQ30 caster Nylon castor non-marking twinwheel double swivel brake Hospital beds Hospital and surgery equipment Operating tables Nursing home beds Medical equipment

Note: Additional consulting necessary - please contact our sales department.

Add to wishlist Remove from wishlist

Drawing Detail 3D Model PDF Data Sheet

Wheel
Wheel tyres	TPU
Wheel width (mm)	20
Wheel Ø (mm)	150
Colour of wheel hub/cover	RAL 9002 - Grey white
Material of wheel hub	Polyamide
Wheel hardness	94 shore A
Wheel bearing	Ball bearing
Castor
Wheel axle	Steel riveted
Offset (mm)	52
Swivel radius (mm)	131
Design	Double swivel castor
Swivel bearing	Single-row ball bearing
Mounting height (mm)	155
Main colour	RAL 9002 - Grey white
Housing material	Polyamide
Conductivity	Conductive
Weight	1,290 g
Attachment
Attachment	Stem for central locking
Fitting dimension	Stem Ø32x50mm switching profile horizontal
Lock
Locking device	Total and directional lock
Central locking system	Central locking system

Load Capacity (dynamic)	150 kg
Load Capacity (static)	450 kg
Temperature Range	from -10 °C to 40 °C
Compliance	RoHS, REACH
Standards	DIN EN 12531
	ISO 22882
