SERIES870

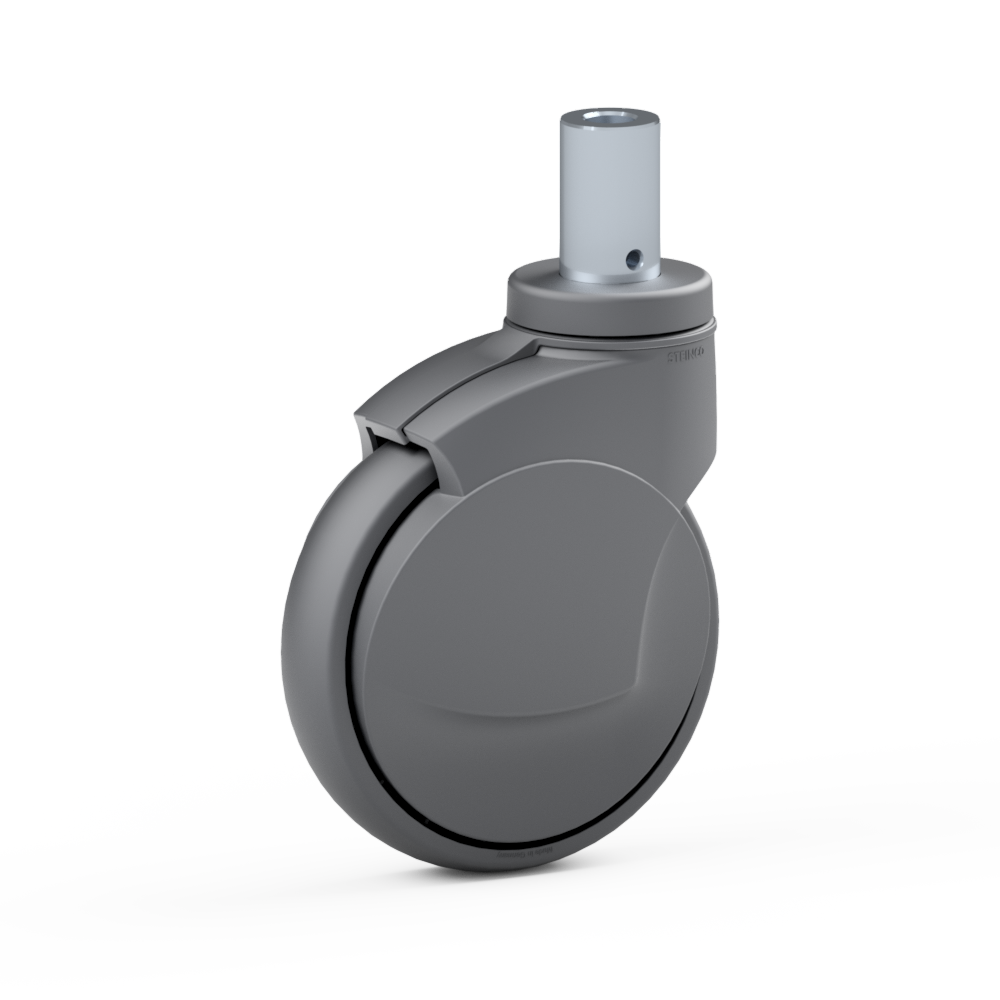

Swivel castor, Ø 150 mm
Article No.:
1.ZD11.NPG1
GTIN / EAN:
4251984317127
CTN:
94029000
Description:
Single wheel swivel castor, Housing made of polyamide, swivel bearing with precision ball bearing, colour: RAL 7024 - Graphite grey
Wheel with ball bearing and non-marking grey polyurethane tyres (TPU)
Connection via stem Ø28x45mm
Special functions: cleaning by wipe disinfection possible without restrictions Single wheel swivel castor, stem Ø28x45mm, wheel diameter: 150mm, load capacity: 135 kg, with non-marking grey polyurethane tyres (TPU) / 94 shore A 1 ZD11 NPG1 1#ZD11#NPG1 1ZD11NPG1 caster Nylon castor non-marking singlewheel Hospital beds Medical equipment Nursing home beds Medical equipment
| Wheel |
|
| Wheel tyres |
TPU |
| Wheel width (mm) |
32 |
| Wheel Ø (mm) |
150 |
| Cover colour |
RAL 7030 - Stone grey |
| Colour of wheel hub/cover |
RAL 7024 - Graphite grey |
| Material of wheel hub |
Polyamide |
| Wheel hardness |
94 shore A |
| Wheel bearing |
Ball bearing |
| Castor |
|
| Wheel axle |
Steel riveted
|
| Offset (mm) |
40
|
| Swivel radius (mm) |
115
|
| Design |
Single wheel swivel castor
|
| Swivel bearing |
Single-row ball bearing
|
| Mounting height (mm) |
188
|
| Main colour |
RAL 7024 - Graphite grey
|
| Housing material |
Polyamide
|
| Conductivity |
Non-conductive
|
|
Weight | 946 g
|
| Attachment |
|
| Attachment |
Plain stem with transversal bore |
| Fitting dimension |
Stem Ø28x45mm |
|
Load Capacity (dynamic) | 135 kg
|
|
Load Capacity (static) | 405 kg
|
|
Temperature Range | from -10 °C to 40 °C
|
|
Compliance | RoHS, REACH
|
|
Standards | DIN EN 12531
|
|
| ISO 22882
|
