SERIES878

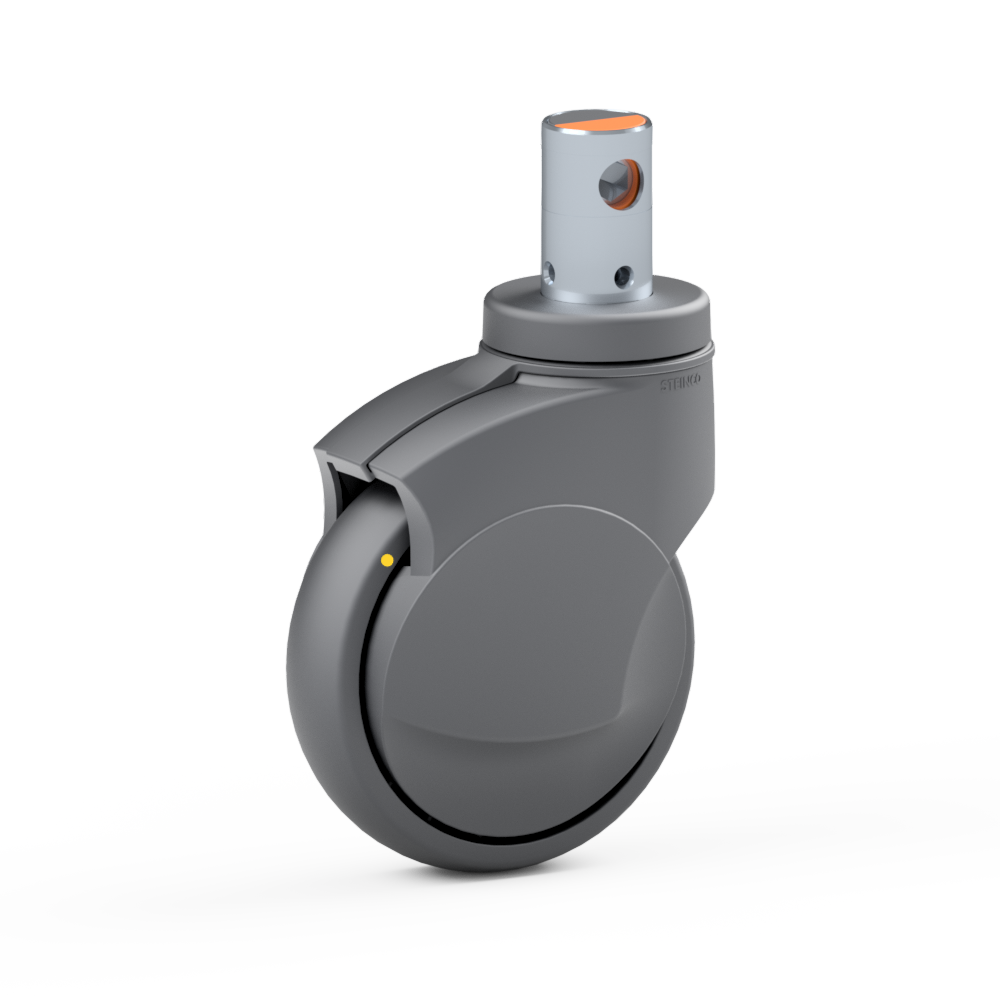

Swivel castor, Ø 125 mm
Article No.:
2.ZAA1.NNH1
GTIN / EAN:
4251984317011
CTN:
94029000
Description:
Single wheel swivel castor, Housing made of polyamide, swivel bearing with precision ball bearing, colour: RAL 7024 - Graphite grey
Locking device with total lock, centrally operated
Wheel with ball bearing and non-marking grey polyurethane tyres (TPU)
Connection via stem Ø32x50mm switching profile vertical
Special functions: cleaning by wipe disinfection possible without restrictions, conductive Single wheel swivel castor with total lock, centrally operated, stem Ø32x50mm, wheel diameter: 125mm, load capacity: 135 kg, with non-marking grey polyurethane tyres (TPU) / 94 shore A, Conductive 2 ZAA1 NNH1 2#ZAA1#NNH1 2ZAA1NNH1 caster Nylon castor non-marking singlewheel brake Hospital beds Medical equipment Nursing home beds Medical equipment
| Wheel |
|
| Wheel tyres |
TPU |
| Wheel width (mm) |
32 |
| Wheel Ø (mm) |
125 |
| Cover colour |
RAL 7024 - Graphite grey |
| Colour of wheel hub/cover |
RAL 7024 - Graphite grey |
| Material of wheel hub |
Polyamide |
| Wheel hardness |
94 shore A |
| Wheel bearing |
Ball bearing |
| Castor |
|
| Wheel axle |
Steel riveted
|
| Offset (mm) |
35
|
| Swivel radius (mm) |
98
|
| Design |
Single wheel swivel castor
|
| Swivel bearing |
Single-row ball bearing
|
| Mounting height (mm) |
165
|
| Main colour |
RAL 7024 - Graphite grey
|
| Housing material |
Polyamide
|
| Conductivity |
Conductive
|
|
Weight | 940 g
|
| Attachment |
|
| Attachment |
Stem for central locking |
| Fitting dimension |
Stem Ø32x50mm switching profile vertical |
| Lock |
|
| Locking device |
Total lock |
| Central locking system |
Central locking system |
|
Load Capacity (dynamic) | 135 kg
|
|
Load Capacity (static) | 405 kg
|
|
Temperature Range | from -10 °C to 40 °C
|
|
Compliance | RoHS, REACH
|
|
Standards | DIN EN 12531
|
|
| ISO 22882
|
