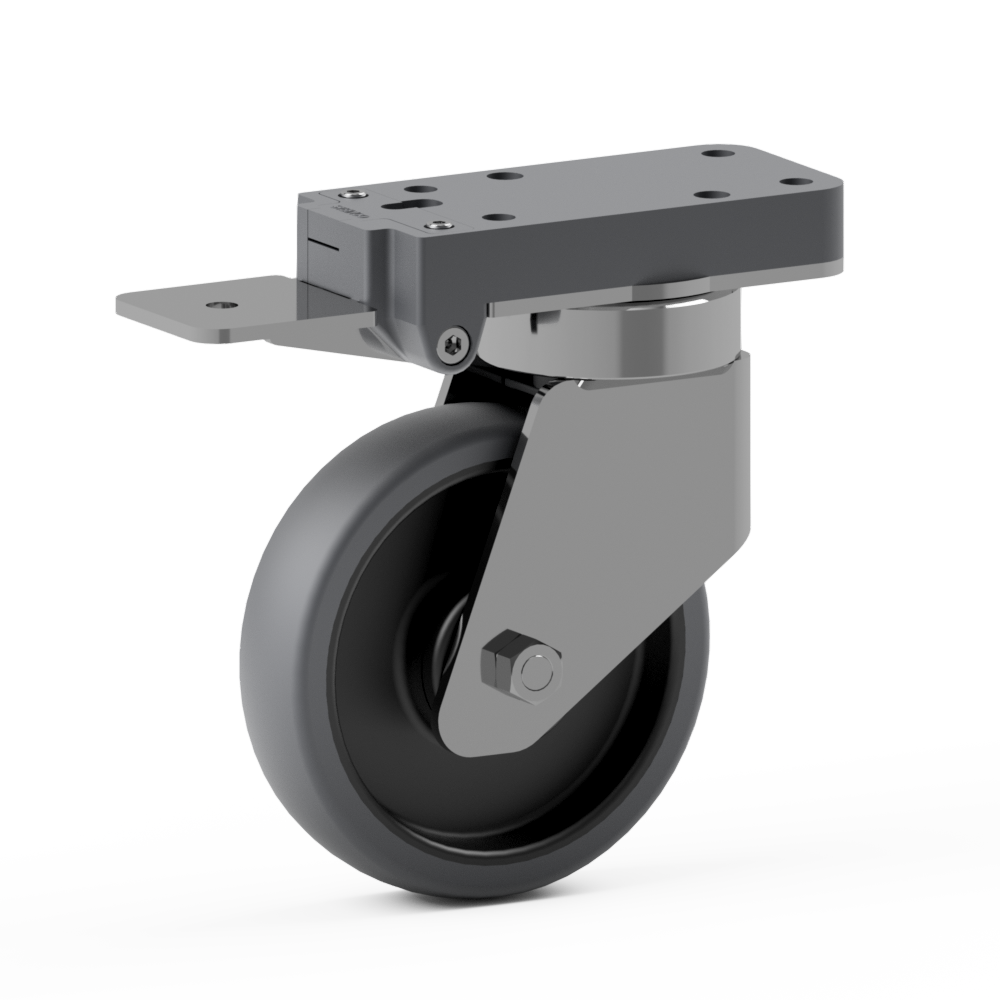

Image similar to the original2.PD00.QDP0, Single wheel swivel castor, ∅ 200 mm, Ball bearing, TPU, Mounting plate

SERIES207
Swivel castor, Ø 200 mm

Castors & wheels for medical equipment such as hospital beds and nursing beds, medical devices and hospital equipment.Castors & wheels for commercial kitchen logistics such as serving trolleys, tray trolleys and shelf trolleys.Castors & wheels for factory equipment such as transport equipment, workshop trolleys and mobile equipment.Castors & wheels for office & laboratory like task chairs, office chairs, laboratory furniture, office furniture and conference furniture.
Article No.:2.PD00.QDP0
GTIN / EAN: 4251984318957
CTN: 87169090
Description:Single wheel swivel castor, Housing made of stainless steel (stainless steel), swivel bearing with precision ball bearing
Locking device with total lock and spring loaded directional lock
Wheel with ball bearing and non-marking grey polyurethane tyres (TPU) with thread guard
Connection via mounting plate 160x80mm
Special functions: machine washable with the recommendations of the AK-BWA, stainless, conductive
Single wheel swivel castor with total lock and spring loaded directional lock, 160x80mm, wheel diameter: 200mm, load capacity: 200 kg, with non-marking grey polyurethane tyres (TPU) / 94 shore A, Conductive 2 PD00 QDP0 2#PD00#QDP0 2PD00QDP0 caster Stainless steel castor non-marking singlewheel brake AGV units Serving trolleys Transport equipment Factory equipment Office & laboratory Central kitchen logistics Medical equipment
Note: Customized Product – Contact our Sales Department.
Wheel
Wheel tyresTPU
Wheel width (mm)45
Wheel Ø (mm)200
Colour of wheel hub/coverRAL 9011 - Graphite black
Material of wheel hubPolypropylene
Wheel hardness94 shore A
Wheel bearingBall bearing
Castor
Wheel axleStainless steel screw
Offset (mm)64
Swivel radius (mm)170
DesignSingle wheel swivel castor
Swivel bearingSingle-row ball bearing
Mounting height (mm)261
Thread guardWith thread guard
Housing materialStainless steel (stainless steel)
ConductivityConductive
RustproofStainless
WashableWashable (AK-BWA guideline)
Weight785 g
Attachment
AttachmentMounting plate
Fitting dimensionMounting plate 160x80mm
Lock
Locking deviceTotal lock and spring loaded directional lock
Load Capacity (dynamic)200 kg
Load Capacity (static)600 kg
Temperature Rangefrom -10 °C to 40 °C
ComplianceRoHS, REACH
StandardsDIN EN 12532
DIN EN 18867
