Article No.: 3.YZ00.PBA0
×Please choose your CAD file format

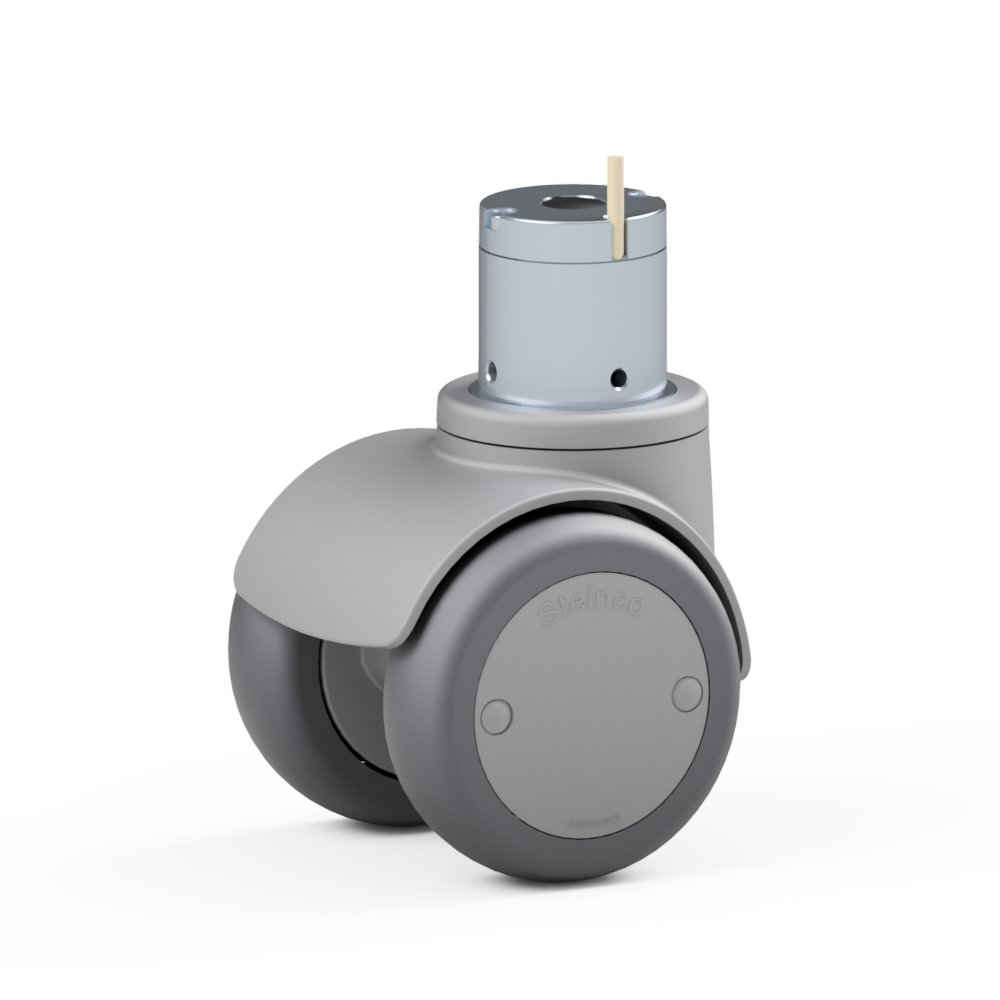

Image similar to the original SERIES590V
Ø 100 mm
Article No.:3.YZ00.PBA0
CTN: 87169090
Description:, Housing made of polyamide, swivel bearing with precision ball bearing, colour: RAL 7001 - Silver grey
Wheel with ball bearing and non-marking grey polyurethane tyres (TPU)
Connection via
Special functions: cleaning by wipe disinfection possible without restrictions , , wheel diameter: 100mm, load capacity: 300 kg, with non-marking grey polyurethane tyres (TPU) / 97 shore A 3 YZ00 PBA0 3#YZ00#PBA0 3YZ00PBA0 caster Nylon castor non-marking twinwheel double swivel Medical equipment Operating tables Medical equipment
| Wheel | |
|---|
| Wheel tyres | TPU |
|---|
| Wheel width (mm) | 32 |
|---|
| Wheel Ø (mm) | 100 |
|---|
| Colour of wheel hub/cover | RAL 7001 - Silver grey |
|---|
| Material of wheel hub | Polyamide |
|---|
| Wheel hardness | 97 shore A |
|---|
| Wheel bearing | Ball bearing |
|---|
| Castor | |
|---|
| Wheel axle | Steel riveted |
|---|
| Offset (mm) | 27 |
|---|
| Swivel radius (mm) | 92 |
|---|
| Swivel bearing | Single-row ball bearing |
|---|
| Mounting height (mm) | 122 |
|---|
| Thread guard | Standard |
|---|
| Main colour | RAL 7001 - Silver grey |
|---|
| Housing material | Polyamide |
|---|
| Conductivity | Non-conductive |
|---|
| Weight | 1,026 g |
|---|
| Attachment | |
|---|
| Attachment | Stem |
|---|
| Load Capacity (dynamic) | 300 kg |
|---|
| Load Capacity (static) | 900 kg |
|---|
| Temperature Range | from -10 °C to 40 °C |
|---|
| Compliance | RoHS, REACH |
|---|
| Standards | DIN EN 12530 |
|---|
